Shrink Tunnels
01 Overview
SEALED AIR® brand Shanklin® shrink tunnels are recognized for durability, design excellence, and quality manufacturing.
Our shrink wrap tunnels are flexible, dependable, and ready to take on your toughest shrink wrap challenges. Shanklin tunnels are an ideal match for our automatic wrappers and your choice of varying tunnel passage dimensions ensures that there’s a model just right for your application.
- Digital temperature control for +/-2 degree tolerance
- Unparalleled air velocity and control options
- Fin strip heaters no cool down cycle time
- Continuous 5 cm single piece insulation — no hot/cold spots
- Inverter rated AC blower motor with balanced blower wheel
- Quality design and construction
- Available in stainless steel construction
- Offered in varying tunnel sizes and speeds, tunnel passage dimensions, and run different types of shrink film
02 Product Lines
Product Range
Single-Chamber Shrink Tunnel
Dual-Chamber Shrink Tunnel
Large-Capacity Shrink Tunnel
Single-Chamber Shrink Tunnel
With their longer single chambers, SEALED AIR® brand Shanklin® single-chamber shrink tunnels increase shrink capacity at higher speeds. Plus, air temperature and velocity can be fully controlled, allowing users to customise shrinking conditions to suit the application.
- 60-in (152.4 cm) single-chamber tunnel facilitates increased shrinking capacity at higher speeds
- Fast conveyor speeds, from 7.6 to 45.7 m per minute
- Powerful hot air system keeps pace with the most demanding use
- T-81 tunnel passage is slightly wider and higher than that of the T-71
- T-71 available in stainless steel construction
- Pairs with the Shanklin Triumph 2 Wrapper

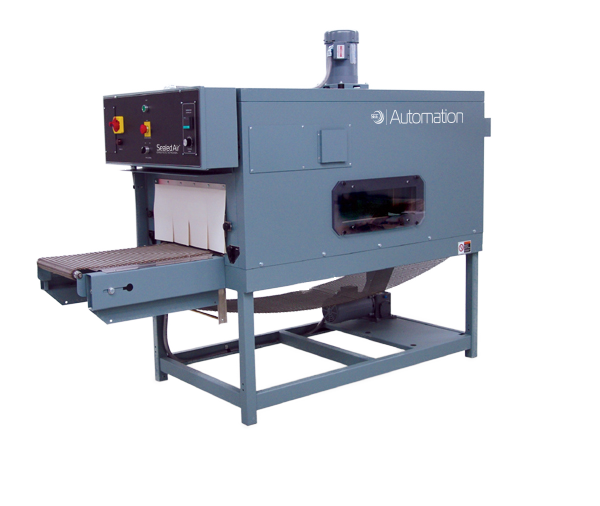

Model T-71
- Tunnel passage: 25.4 cm H x 55.8 cm W x 152.4 cm L
- Tunnel size: 91.4 cm W x 173.9 cm H x 233.6 cm L
Model T-81
- Tunnel passage: 30.4 cm H x 71.1 cm W x 152.4 cm L
- Tunnel size: 106.6 cm W x 173.9 cm H x 251.4 cm L

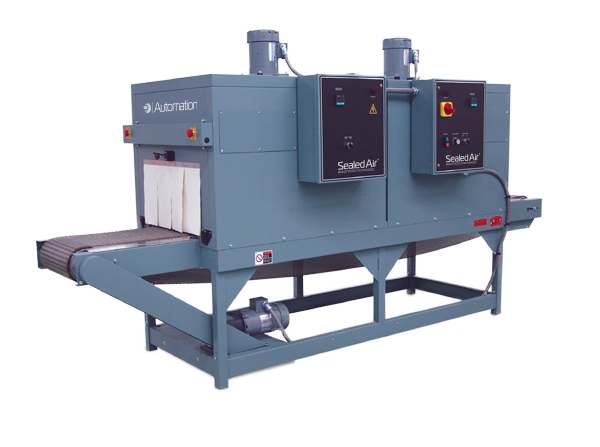

Dual-Chamber Shrink Tunnel
SEALED AIR® brand Shanklin® dual-chamber shrink tunnels solve the most persistent shrink challenges: keeping up with high-speed automatic wrappers, processing products with heat-absorptive surfaces, and tightly wrapping irregularly shaped products. Plus, independently controlled dual chambers allow shrink conditions to be even more easily customized to each unique package.
- High-speed, dual-chamber tunnel, each with independently controlled temperature and air velocity
- Two models offer varying tunnel passage dimensions for diverse shrink wrap applications
- Available in stainless steel construction
- Pairs with the Shanklin HySpeed Servo Series
Model T-62
- Tunnel passage: 25.4 cm H x 45.7 cm W x 154.9 cm
- Tunnel size: 96.5 cm W x 96.5 cm H above conveyor
Model T-72H
- Tunnel passage: 30.4 cm H x 55.8 cm W x 213.3 cm
- Tunnel size: 109.2 cm W x 104,1 cm H above conveyor

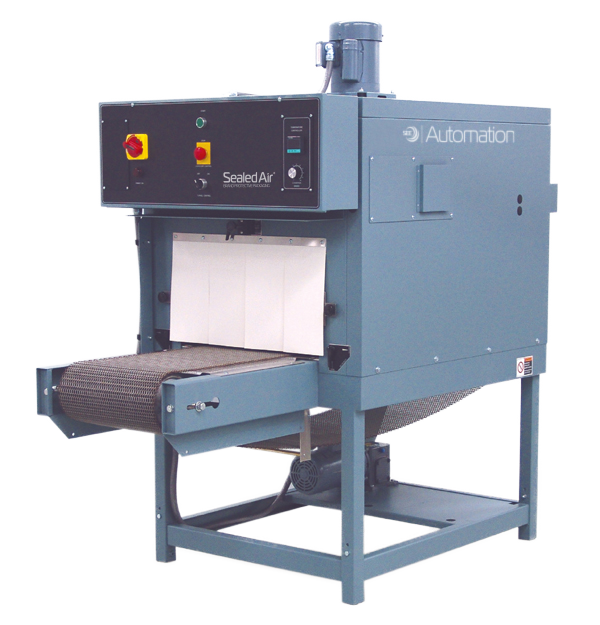

Large-Capacity Shrink Tunnel
SEALED AIR® brand Shanklin® large-capacity shrink tunnels are made with varying heights and widths, making these spacious tunnels ideal for wide, low-profile, or bulky products.
- Precisely engineered hot air circulation pattern produces tightly shrink-wrapped packages
- Optional live roller conveyor recommended for wide, heavy products and rolls wrapped in polyolefin or PVC shrink films
- Pairs with the Shanklin automatic L-sealer
Model T-7H
- Tunnel Passage: 30.4 cm H x 55.8 cm W x 106.6 cm L
Model T-9
- Tunnel Passage: 15.24 cm H x 91.4 cm W x 35.5 cm H
