High-Volume SidePouch Systems
01 Overview
Customise our automated bag and pouch systems to fit your fulfilment needs.
AUTOBAG® brand bag and pouch systems are automated to help increase productivity and reduce costs for various packaging applications. The systems are flexible, offer many options designed to reduce dependency on labour, and provide a lower total package cost. System-matched SidePouch bags offer a variety of features, such as reclosable zips, resealable bags, reinforced headers, and easy-open perforations.
- Fully customisable systems feature a small footprint that integrates into any existing bagging operation
- Bags are presented pre-opened, ready to be filled with multiple operators or automatically with an infeed device
- Separation of the loading and sealing operations allows for high speed bag packing
02 Product Lines
Product Range
SidePouch Industrial System
SidePouch Automated Fulfilment System

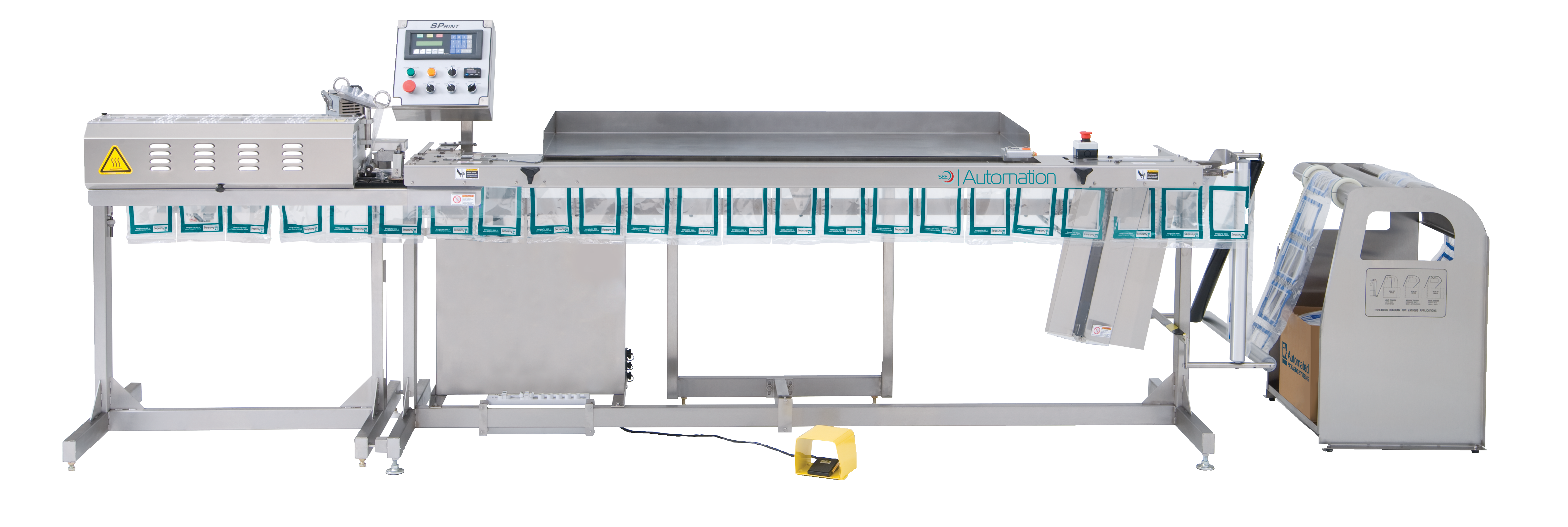

SidePouch Industrial System
Designed to provide high productivity solutions for hand load through fully automatic packaging applications, the automated AUTOBAG® brand SidePouch industrial system operates at 120 bags per minute in continuous mode and offers special bag features. The systems offer the option of continuous or intermittent bag indexing to accommodate the high speeds of individual product or kit packaging.
- Presents a 76.2 cm or 152.4 cm loading area of pre-opened bags ready to be filled with multiple operators or automatically with an infeed device
- Ideal for industrial, retail and medical applications that require different or multiple items per bag
- Quick to set up and easy to operate
- Produces up to 70 bags per minute in intermittent mode and up to 120 bags per minute in continuous mode
- Integrates with automatic infeed equipment, inline imprinters and existing production lines
- Weight:
- 60V: 181 kg
- 30V: 375 kg
- Electrical: 115 VAC; 60 Hz; 20
- Air feed: 60 psi of clean, dry air
- Height: 91 cm
- Depth: 81 cm
- Length:
- 60V: 427 cm
- 30V: 351 cm
- Pass-through: Up to Up to 12.7 cm
- Bag thickness: 1.5 to 4.0 mm
- Bag sizes: Width 6.6 cm to 50.8 cm, Length 7.6 cm to 47.6 cm

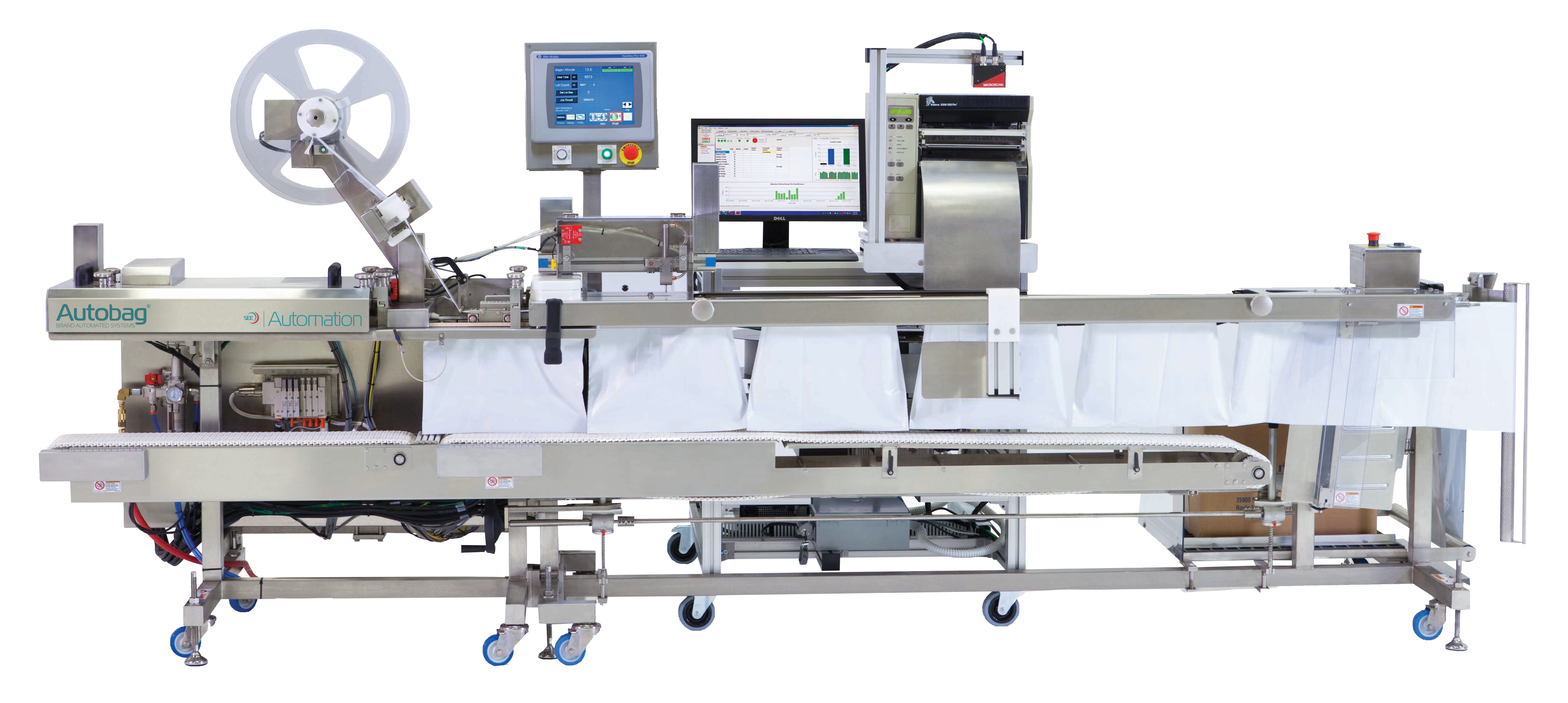

SidePouch Automated Fulfilment System
AUTOBAG® brand SidePouch automated fulfilment system provides speed and flexibility to e-commerce operations. The system first delivers a pre-opened bag while the shipping label is automatically printed and applied. An optional inline printer produces and inserts the packing slip. An optional collator delivers the product for hand insertion. The operator then cycles the packaging machine by scanning the next product to be loaded, triggering automated sealing of the previously loaded and labelled bag.
- Automatically labels, verifies and seals for fast and accurate automated order fulfilment
- Easily integrates with existing warehouse management systems
- Multi-point verification ensures accuracy in single or multiple item orders
- Modular and customisable components provide for flexible configuration and expansion for growth
- Weight: 514 kg
- Electrical:115 VAC; 60 Hz; 15 Amps
- Bag thickness: 35 -100µm
- Air feed: 80 psi of clean, dry air
- Bag sizes: W 5.1cm to 60.9 cm x L 7.6 cm to 47.6 cm
