High-Speed Bagging Systems
01 Overview
AUTOBAG® brand high-speed bagging systems are automatic filling and sealing machines.
AUTOBAG® brand high-speed bagging systems are automatic filling and sealing machines designed for reliability, flexibility and optimising packaging throughput.
State-of-the-art engineering has led to innovative, inherently safe designs. Bagging systems are configurable for left- or right-hand access to the HMI, cycle switch, and bag loading area, improving ergonomics and operator productivity.
- Easily integrates with inline printers, counters, scales and conveyors for semi- to fully automatic bagging
- Modular components and dedicated service access simplify maintenance and repairs to maximise uptime
- Multi-position unwind with tension control simplify changeover
- Touch screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring
- Ideal for packaging large and multi-product packs
02 Product Lines
Product Range
500 Wide Bagging System
600 Horizontal Wide Bagging System
600 Wide Bagging System
800S Wide Bagging System

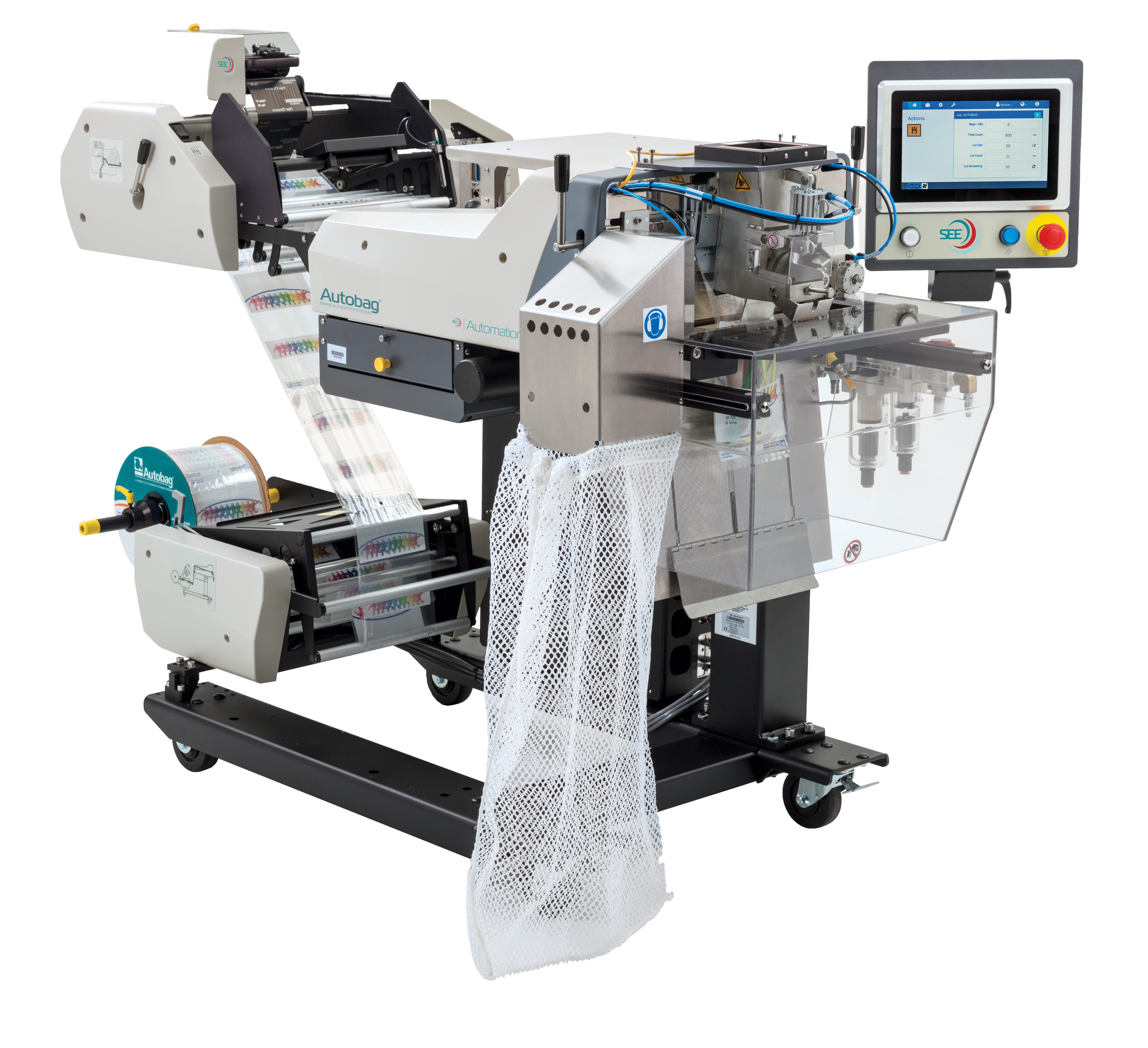

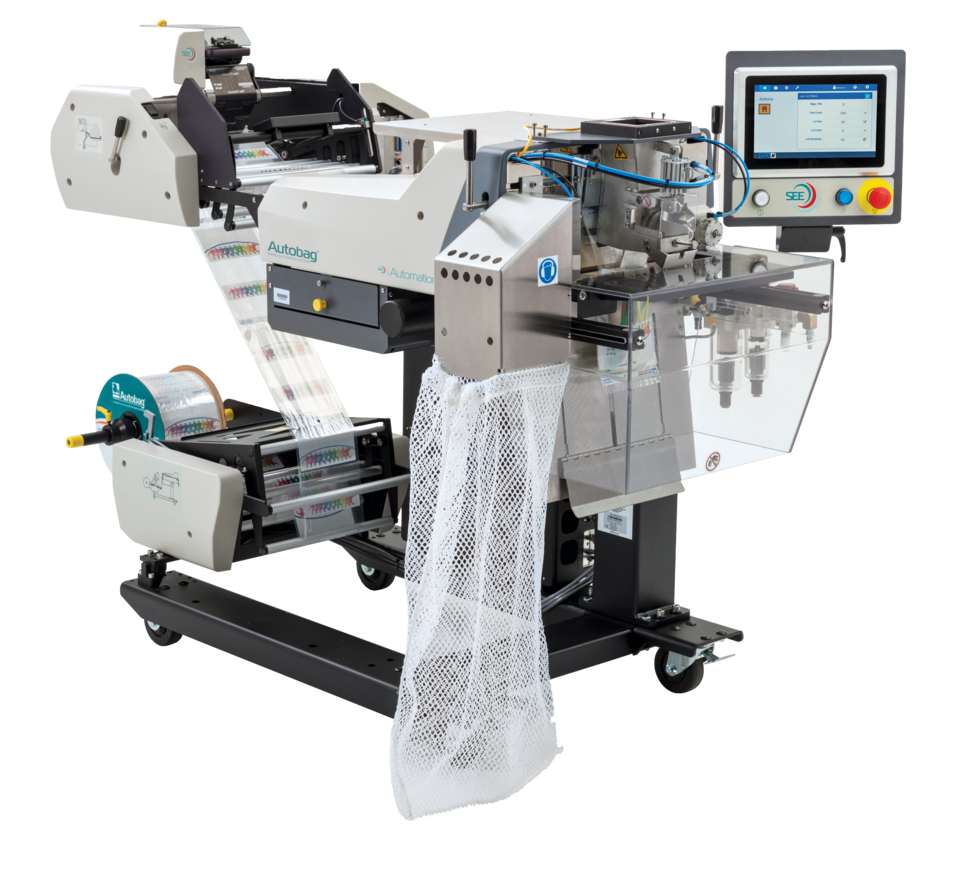

AUTOBAG® Brand 500 Wide Bagging System
AUTOBAG® brand 500 bagger is an advanced automatic filling and sealing machine designed for reliability, flexibility, and optimising packaging throughput. Capable of cycling over 100 bags per minute, this system delivers maximum machine uptime while lowering total cost of ownership. Configurations for left- or right-hand access to the HMI, cycle switch, and bag loading area, improve ergonomics and operator productivity.
- Easily integrates with inline printers, counters, scales and conveyors for semi- to fully-automatic bagging
- Modular components and dedicated service access simplify maintenance and repairs to maximise uptime
- Multi-position unwind with tension control simplify changeover
- AutoTouch™ Control Screen accesses operator tutorials, help system, on-board diagnostics and performance monitoring
- Width: 95.5 cm (adjustable)
- Height: 94.2 com to 119.6 cm
- Length: 163.8 cm
- Pass-through: 12.7 cm max
- Bag thickness: 1.09 mm to 4.0 mm
- Bag sizes: W 5 cm to 30.4 cm, L 6.3 cm to 50.8 cm
- Weighing capacity: Up to 2.2 kg (with load shelf)

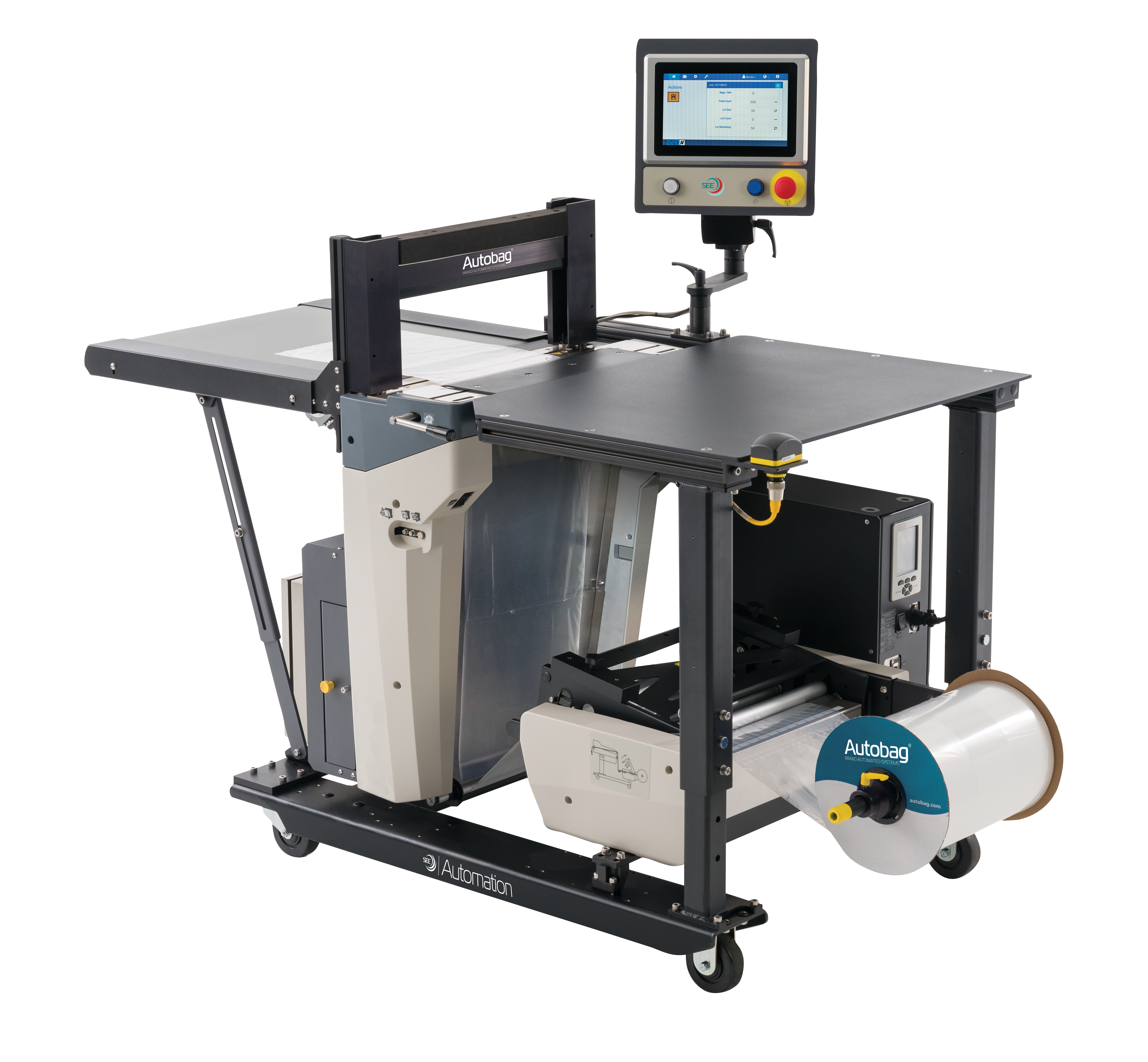

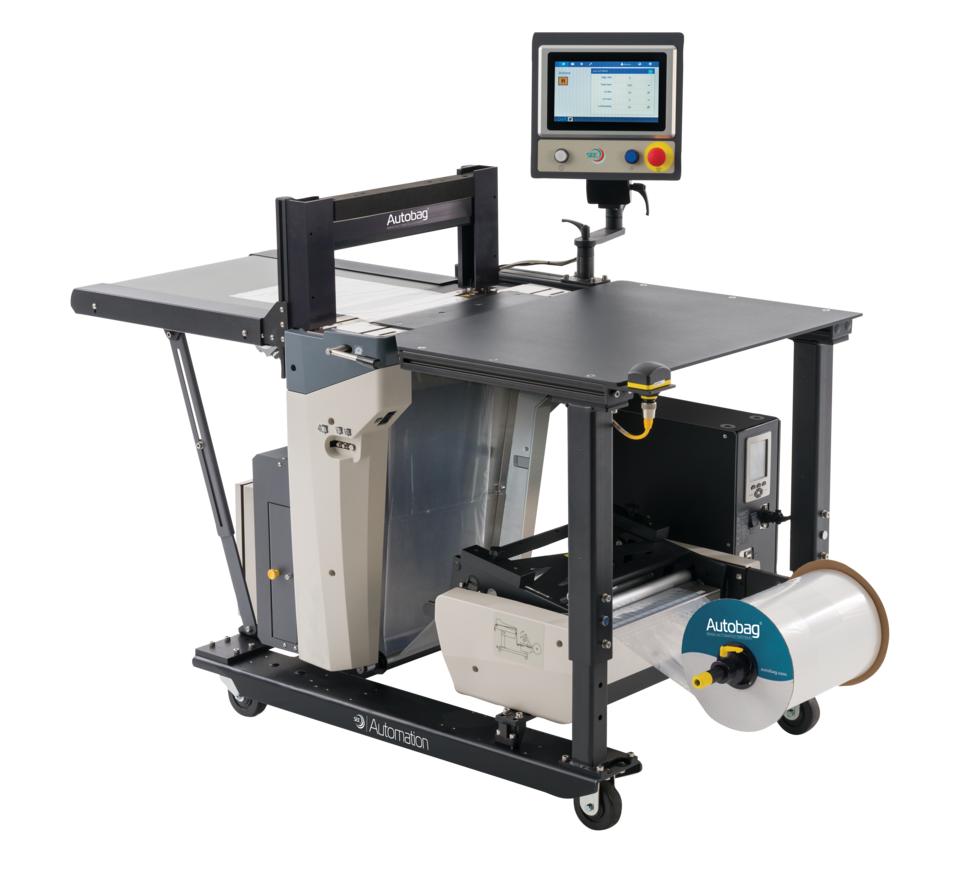

AUTOBAG® Brand 600 Horizontal Wide Bagging System
AUTOBAG® brand 600 horizontal bagging system is an automatic filling and sealing machine ideal for bagging large or bulky products. Capable of running 40.6 cm wide bags, this system offers a large load area for order prep and bulk product queuing and a compact design that maximises available floor space. Load direction configurable for left- or right-hand operation.
- 40.6 cm wide bag loading area is ideal for large or bulk products
- 24 in open-space conveyor provides unrestricted access and effortless transition onto secondary conveyance systems
- Flexible mechanical design streamlines integration
- Width: 87.3 cm
- Height: 86.7 cm to 136 cm
- Length: 169.4 cm
- Pass-through: 15.2 cm max
- Bag thickness: 1.09 mm to 4.0 mm
- Bag sizes: W 10 cm to 41 cm, L 14 cm to 91 cm

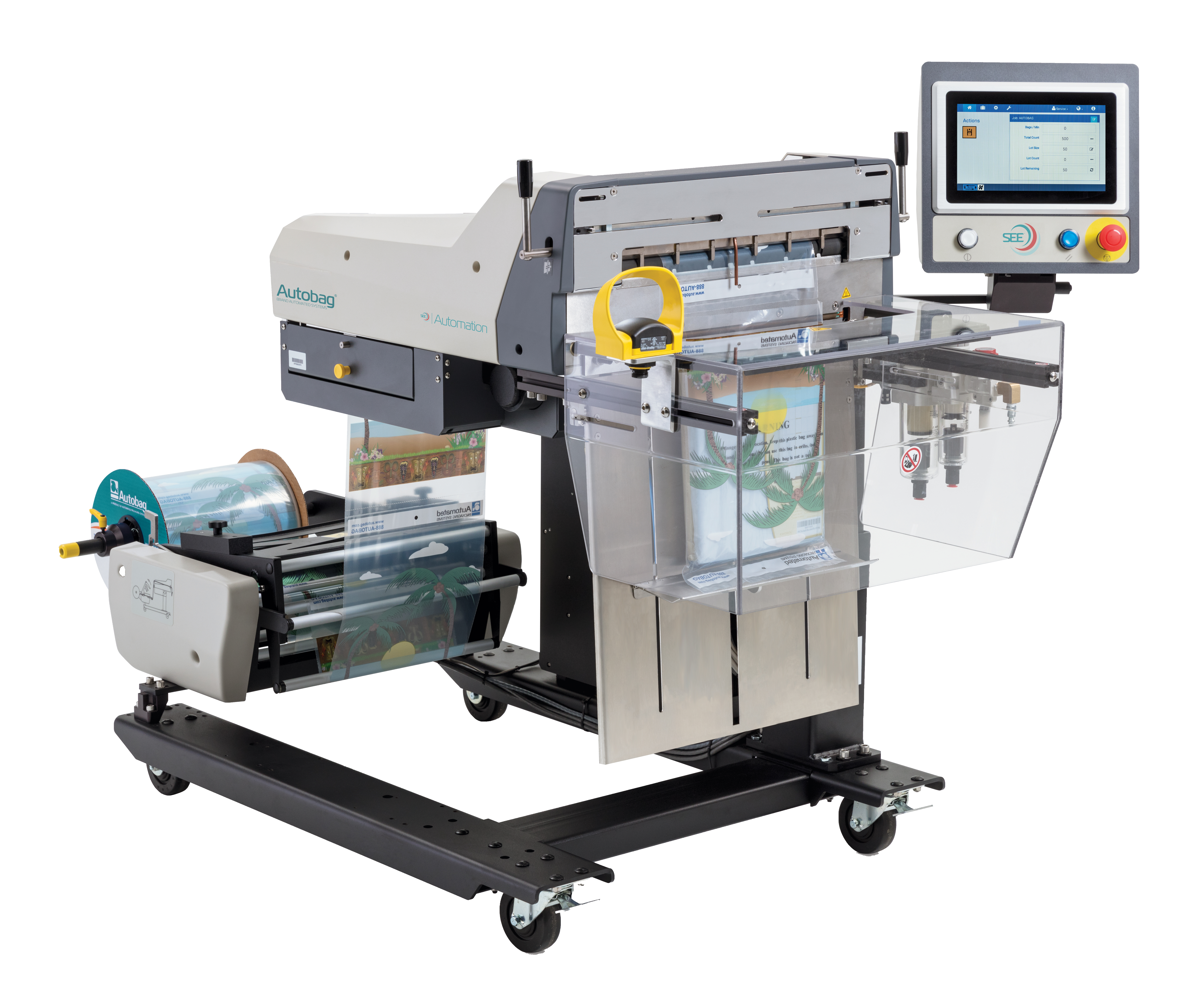

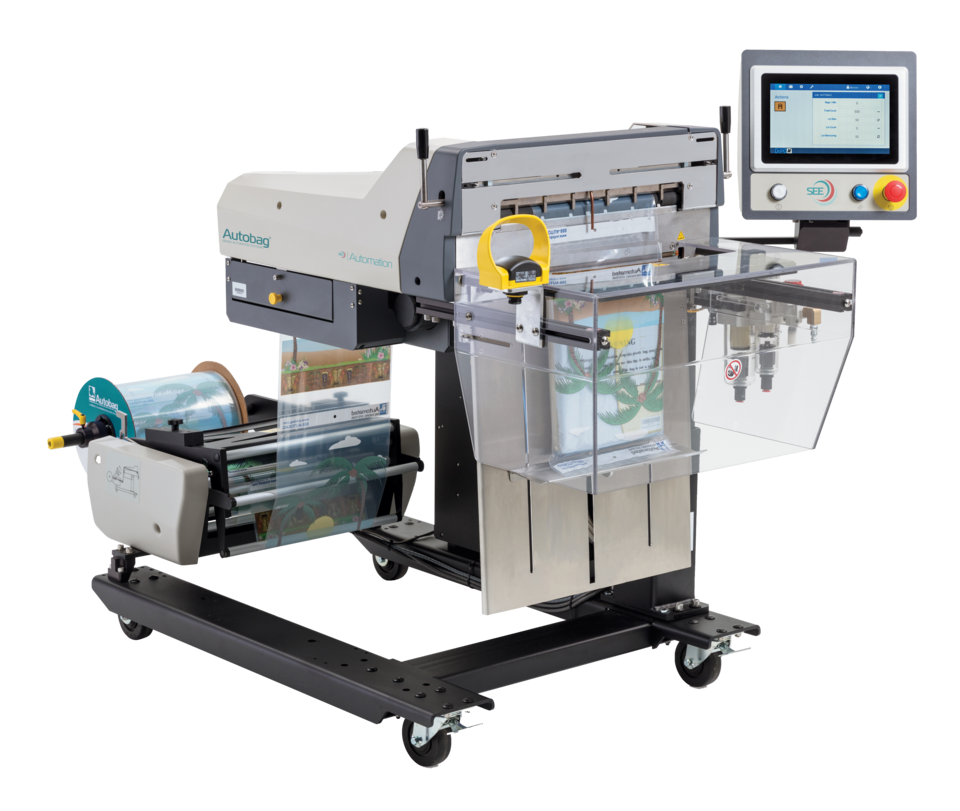

AUTOBAG® Brand 600 Wide Bagging System
AUTOBAG® brand 600 bagger is a wide, automatic filling and sealing machine designed for reliability, flexibility and optimising packaging throughput. Capable of cycling at speeds over 65 bags per minute, this system delivers maximum machine uptime while lowering total cost of ownership. Configurations for left- or right-hand access to the HMI, cycle switch and bag loading area improve ergonomics and operator productivity.
- 40.6 cm wide bag loading area is ideal for large or bulk products
- Compact design minimises floor space
- Simple height adjustment and casters for operator comfort and portability
- Width: 106 cm (adjustable)
- Height: 94 cm to 120 cm
- Length: 177 cm
- Pass-through: 15 cm max
- Bag thickness: 1.09 mm to 4.0 mm
- Bag sizes: W 10 cm to 40.6 cm, L 13.9 cm to 68.5 cm
- Weighing capacity: Up to 2.2 kg (with load shelf)

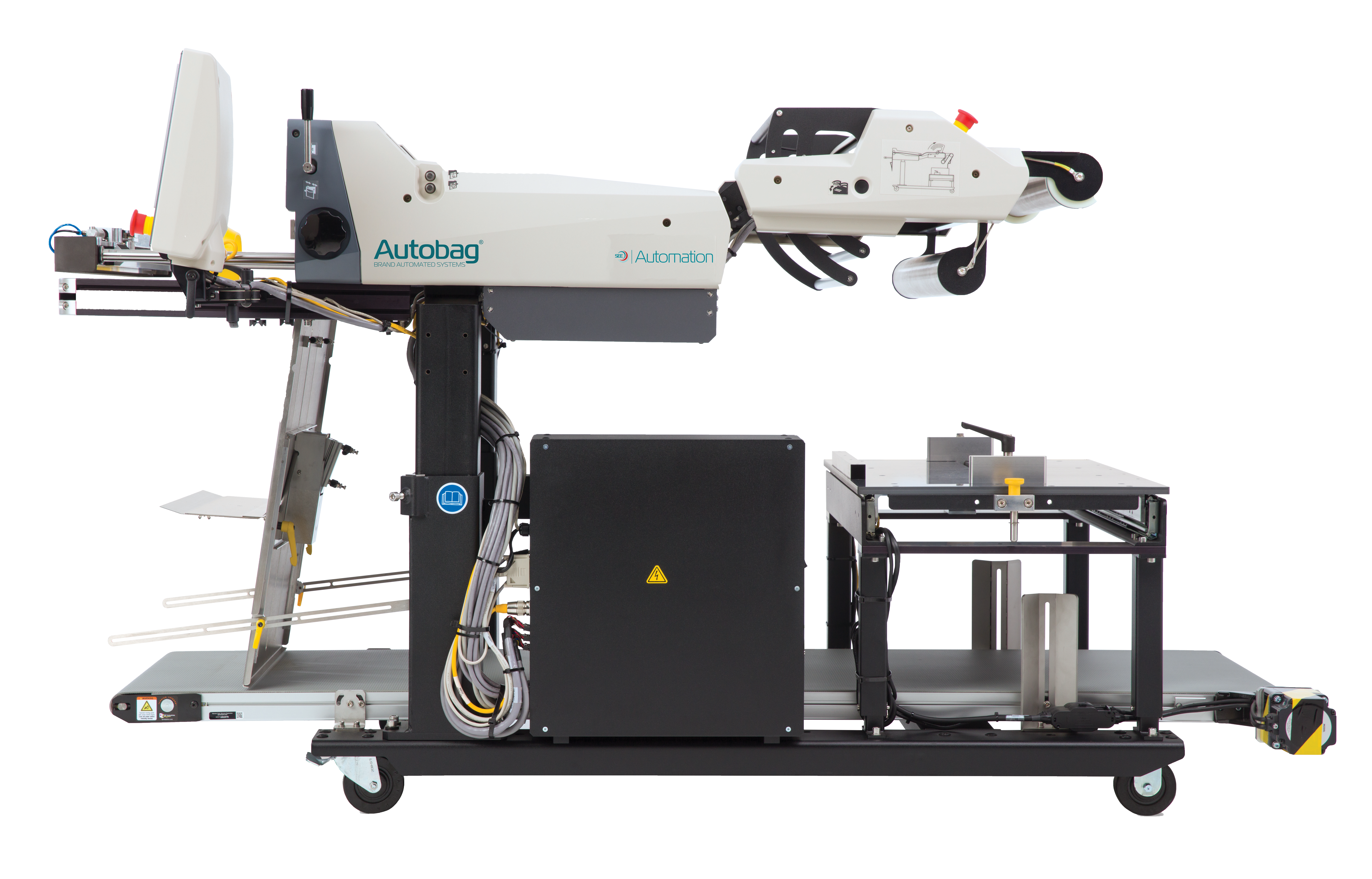

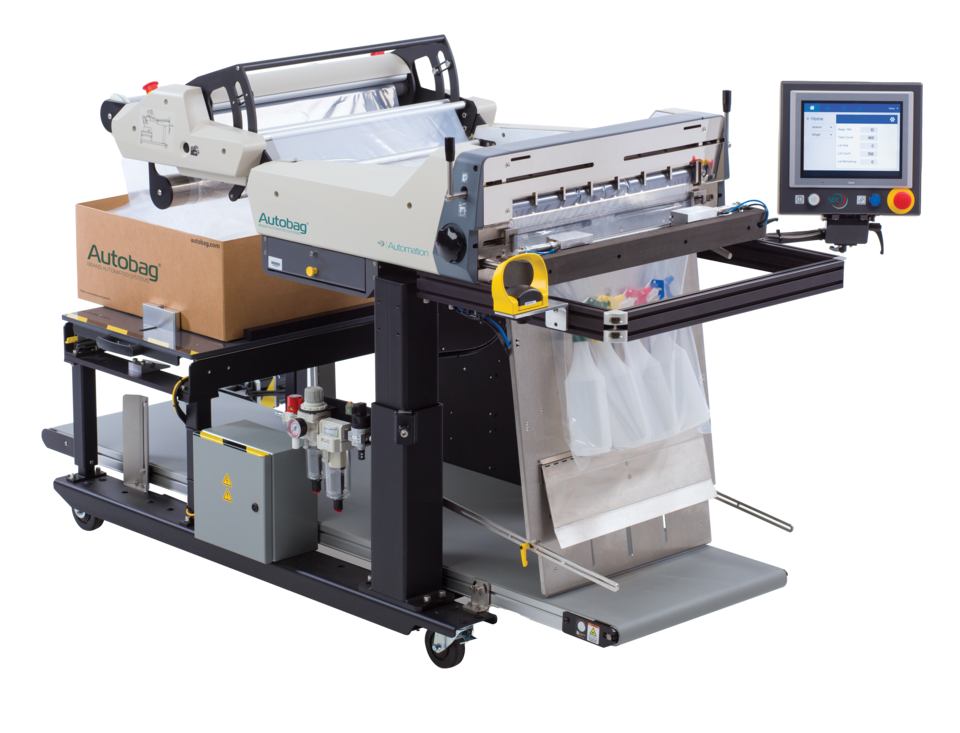

AUTOBAG® Brand 800S Wide Bagging System
AUTOBAG® brand 800S bagger is uniquely designed to provide enhanced productivity for large bag packaging applications up to 55.8 cm wide. This system features a breakthrough bag opening technology that securely grips and holds the open bag in place, creating a large, square opening (up to 28 cm x 28 cm) that allows for easy loading of large products and multiple items.
- Minimal guarding provides unobstructed access to the open bag
- Simple bag threading for easy changeover keeps production lines running smoothly
- Programmable pass-through up to 28 cm for maximum flexibility
- Runs bags up to 55.8 cm wide for bulky products or multi-product bags
- Tension control unit centres and monitors the film position throughout the bagging process
- Compact footprint minimises floor space
- Width: 115 cm (adjustable)
- Height: 110.5 cm to 140.9 cm
- Length: 182.8 cm
- Pass-through: Up to 27.9 cm
- Bag thickness: 1.09 mm to 4.0 mm
- Bag sizes: W 25.4 cm to 55.8 cm, L 25.4 cm to 91.4 cm
- Weighing capacity: Up to 4.5 kg (with load shelf)
