High-Speed Bagging & Printing Systems
01 Overview
AUTOBAG® brand high-speed bagging and printing systems are designed for reliability.

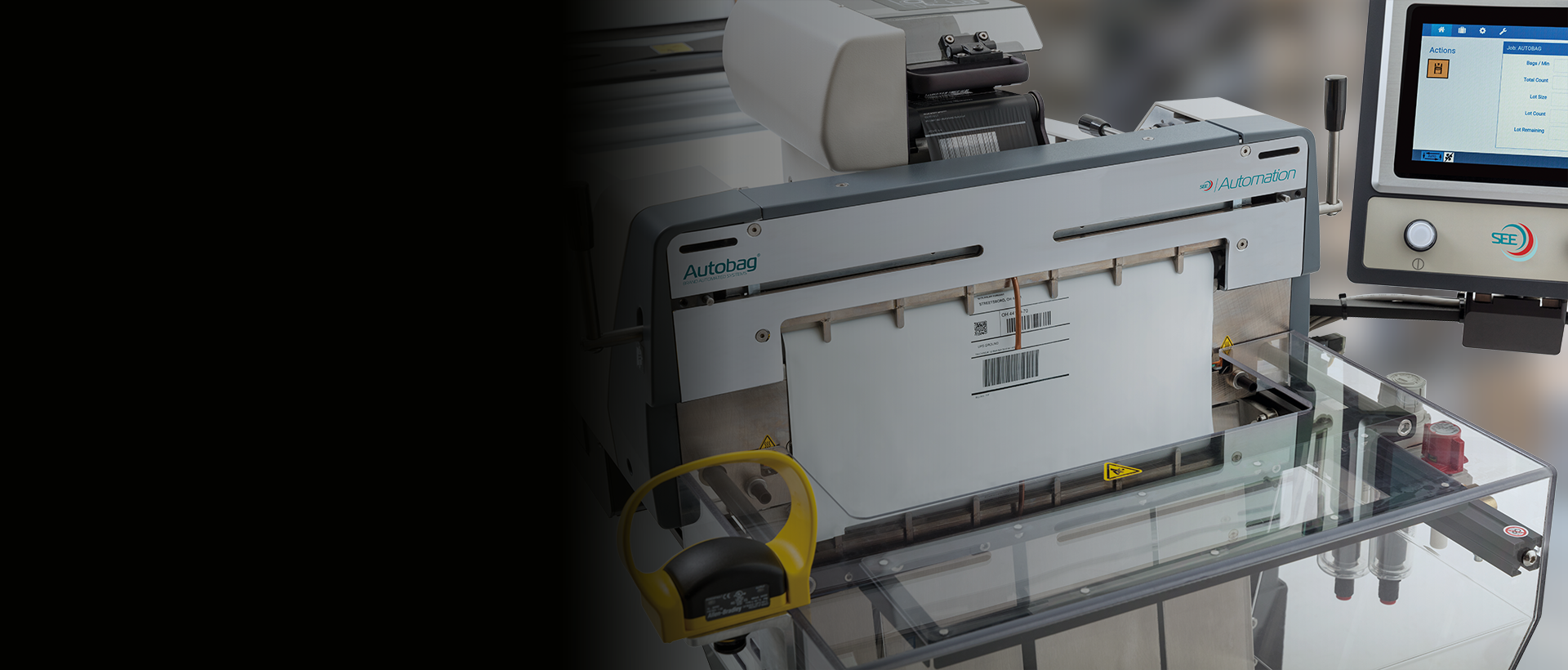

AUTOBAG® brand high-speed bagging and printing systems are automatic filling and sealing machines. High-speed throughputs deliver maximum machine uptime while lowering total cost of ownership. Next-bag-out printing is achieved with an advanced thermal transfer imprinter positioned directly over the next large bag to be loaded, reducing changeover and eliminating the need for a separate labelling operation.
- Multi-position unwind with tension control simplifies changeover
- Easily integrates with third-party systems for e-commerce and mail order fulfilment applications
- Simple height adjustment and casters for operator comfort and portability
- Adjustable pass-through for maximum flexibility and packaging efficiency
- Compact footprint minimises floor space
- AutoTouch™ control screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring
- Accommodates various bag sizes
- Ideal for packaging large-size and multi-product packs
02 Product Lines
Product Range
550 Bagging System
650 Horizontal Wide Bagging System
650 Wide Bagging System
850S Bagging System

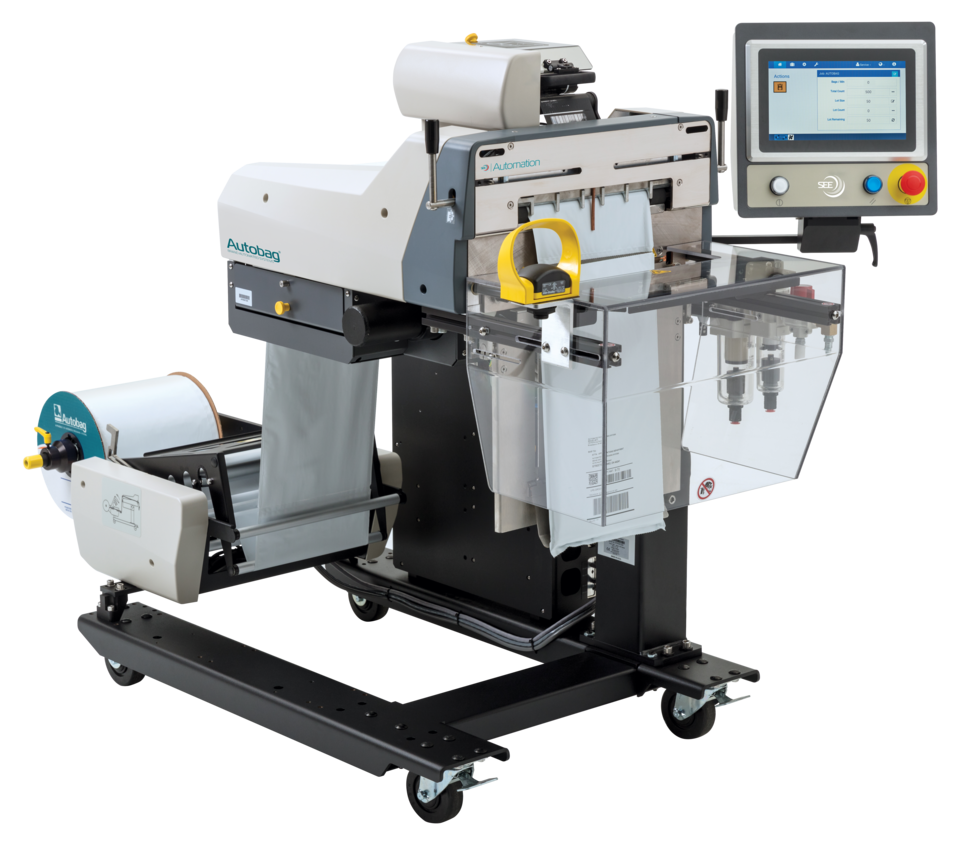

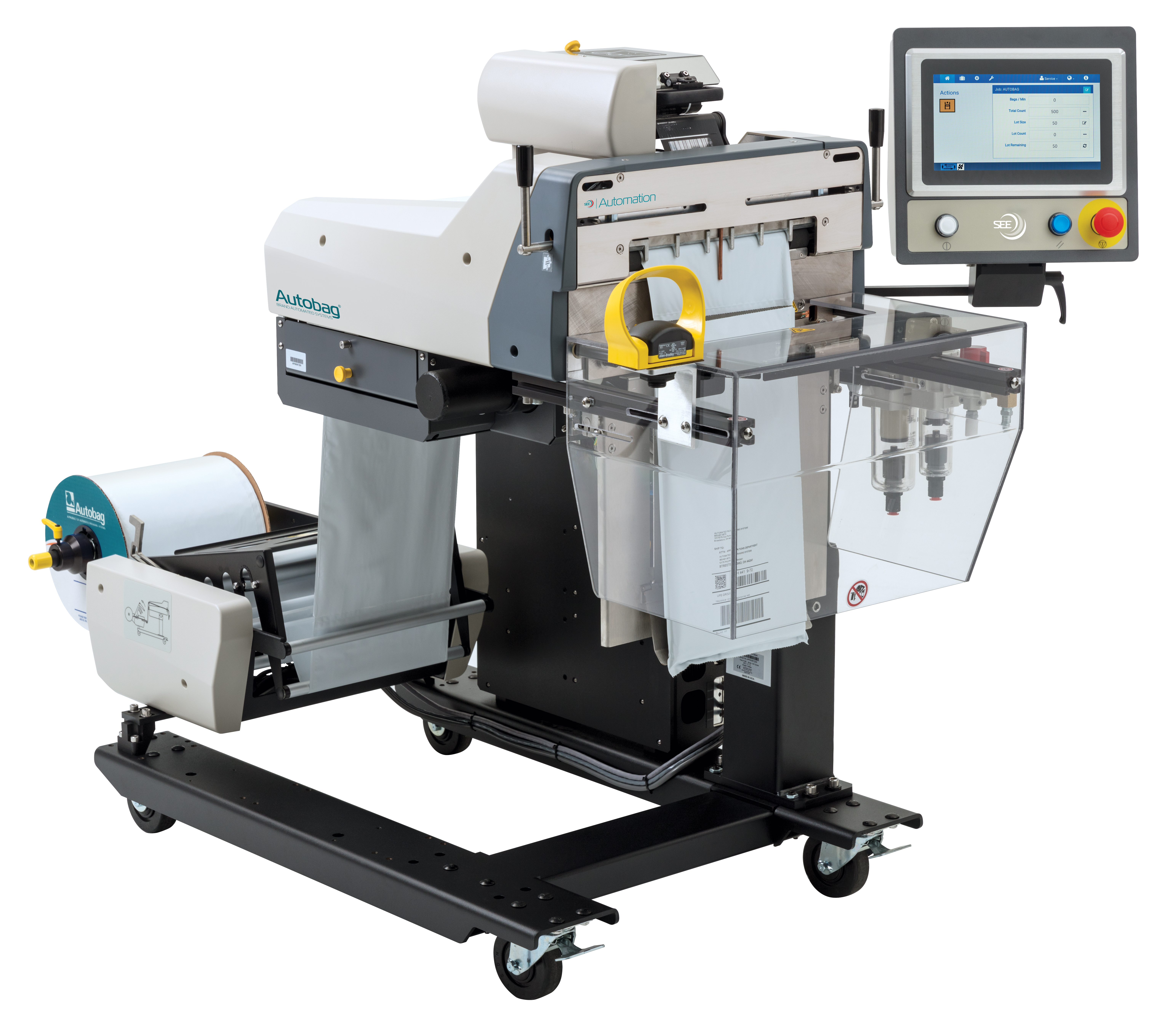

550 Bagging and Printing System
The AUTOBAG® brand 550 bagger optimizes flexibility for e-commerce order fulfillment, short-run, and build-on-demand operations. Next-bag-out printing is achieved with an advanced thermal transfer imprinter positioned directly over the next bag to be loaded, ensuring accuracy and efficiency in applications that require frequent product and label changeovers. This system is capable of cycling at speeds up to 45 bags per minute.
- Next-bag-out printing prevents product queuing and reduces waste
- Multi-position unwind with tension control simplify changeover
- Width: 95.5 cm (adjustable)
- Height: 94.2 cm to 119.6 cm
- Length: 163.8 cm
- Pass-through: 12.7 cm max
- Bag thickness: 1.09 mm to 4.0 mm
- Bag sizes: W 5 cm to 30.48 cm, L 12.7 cm to 50.8 cm
- Weighing capacity: Up to 2.2 kg (with load shelf)

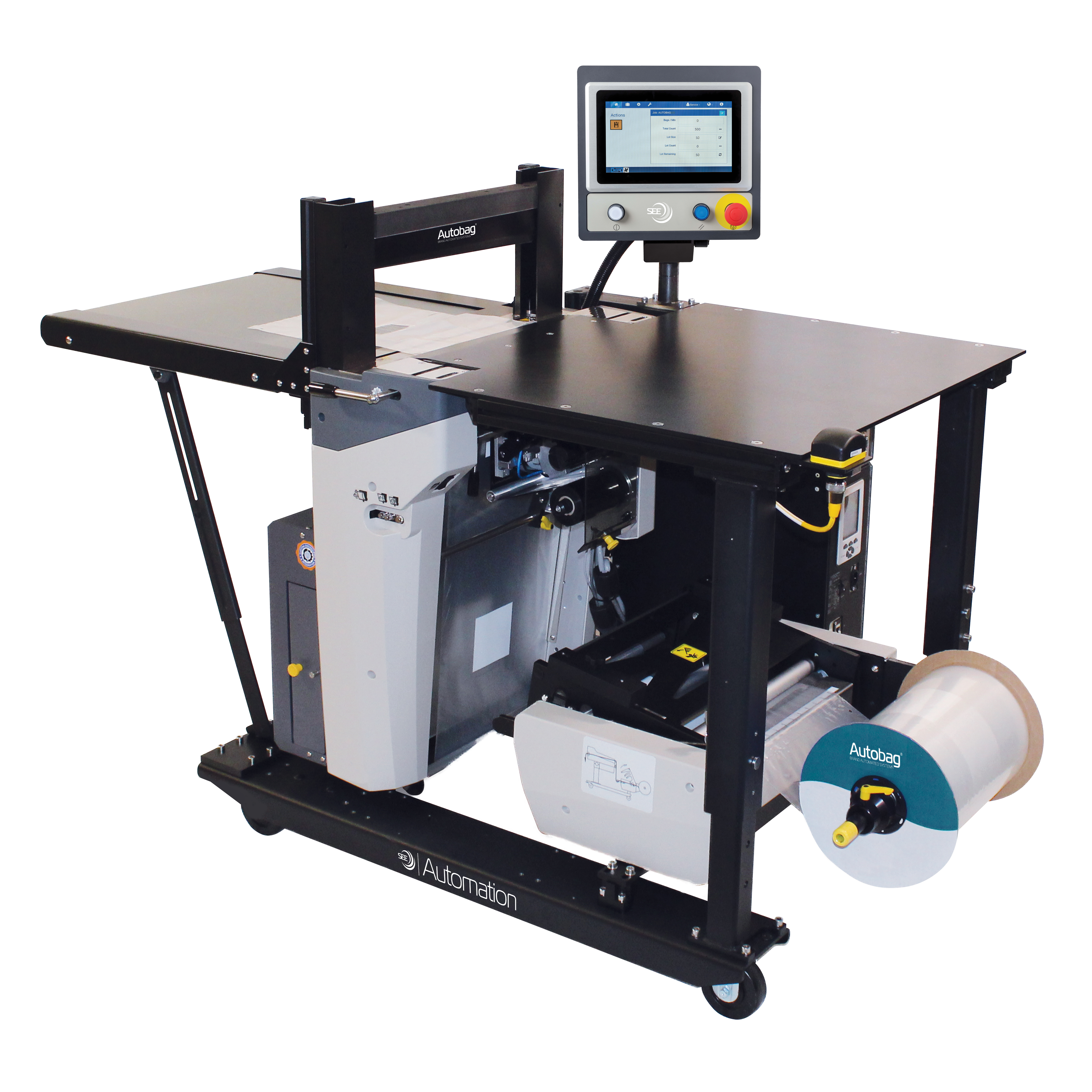

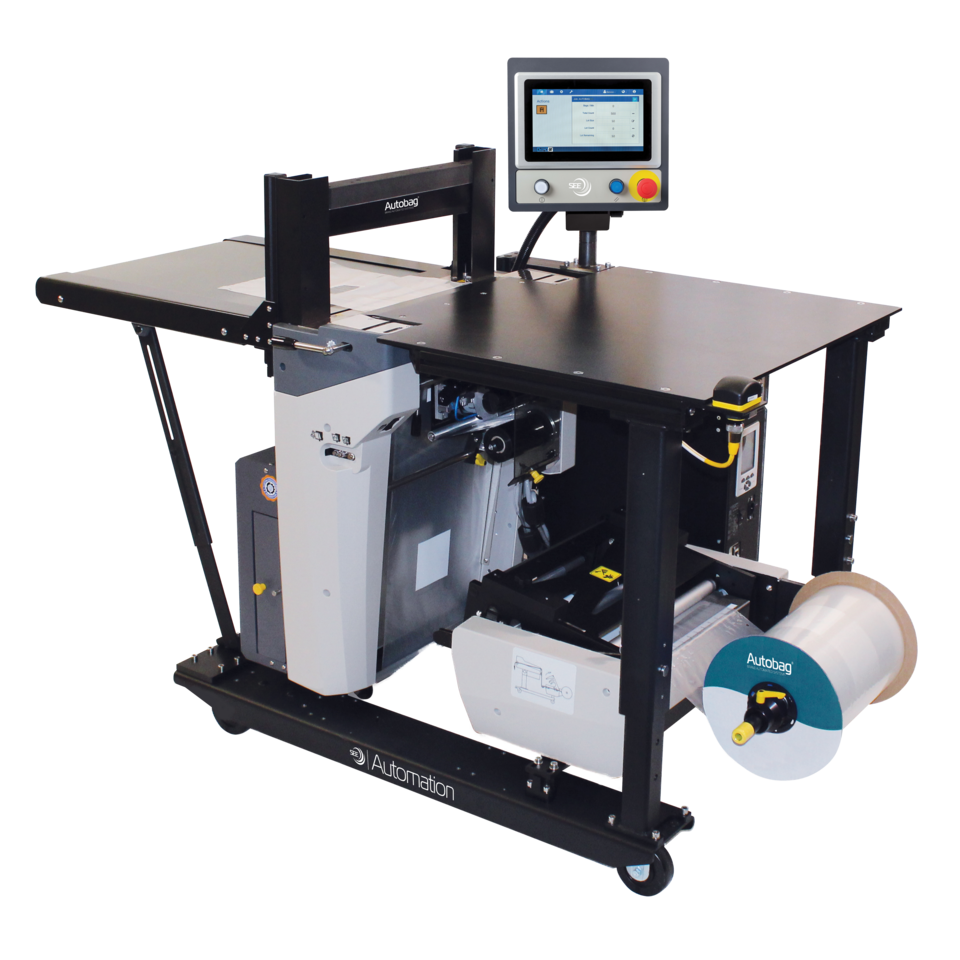

650 Horizontal Wide Bagging and Printing System
The AUTOBAG® brand 650 horizontal bagging system is an automatic filling and sealing machine ideal for e-commerce returns processing, inbound dust cover bagging, and more. Capable of running 40.6 cm wide bags, this system offers a large load area for order prep and bulk product queuing and a compact design that maximises available floor space.
- Horizontal configuration ensures label-up orientation every time
- 60.9 cm conveyor boasts a generous open-space design, enabling unrestricted access and effortless transition onto secondary conveyance systems
- Next-bag-out thermal transfer printing ensures accuracy in applications requiring frequent label changeovers
- Width: 87.3 cm
- Height: 86.7 cm to 136 cm
- Length: 169 cm
- Pass-through: up to 15.2 cm
- Bag thickness: 1.09 mm to 4.0 mm
- Bag sizes: W 10 cm to 40.6 cm, L 13.9 cm to 91.4 cm

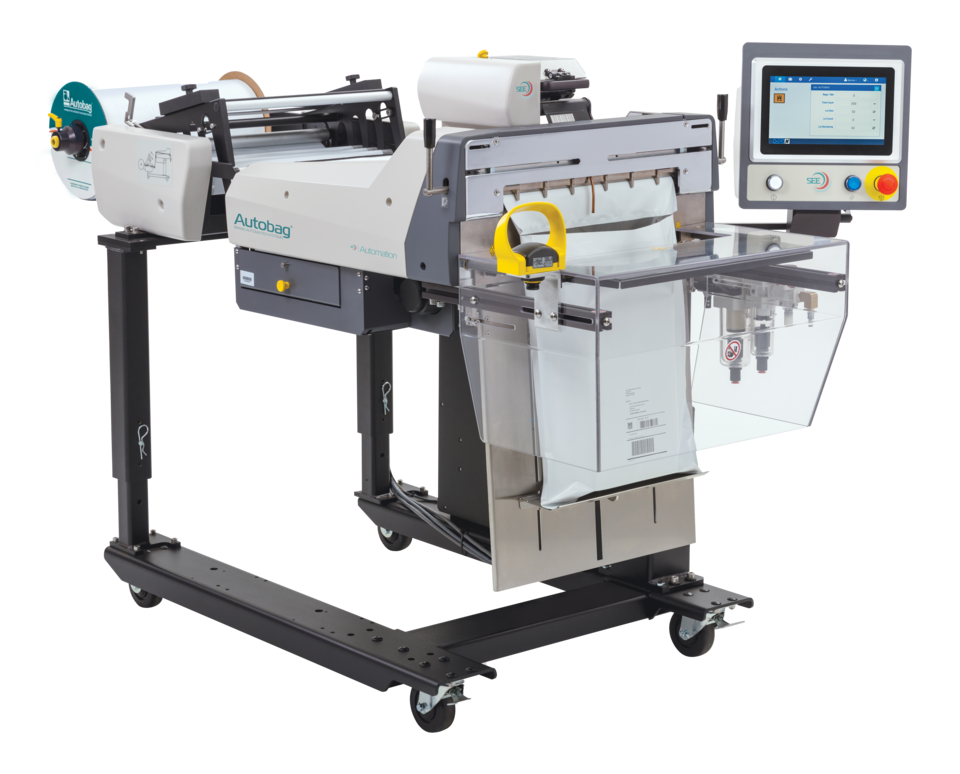

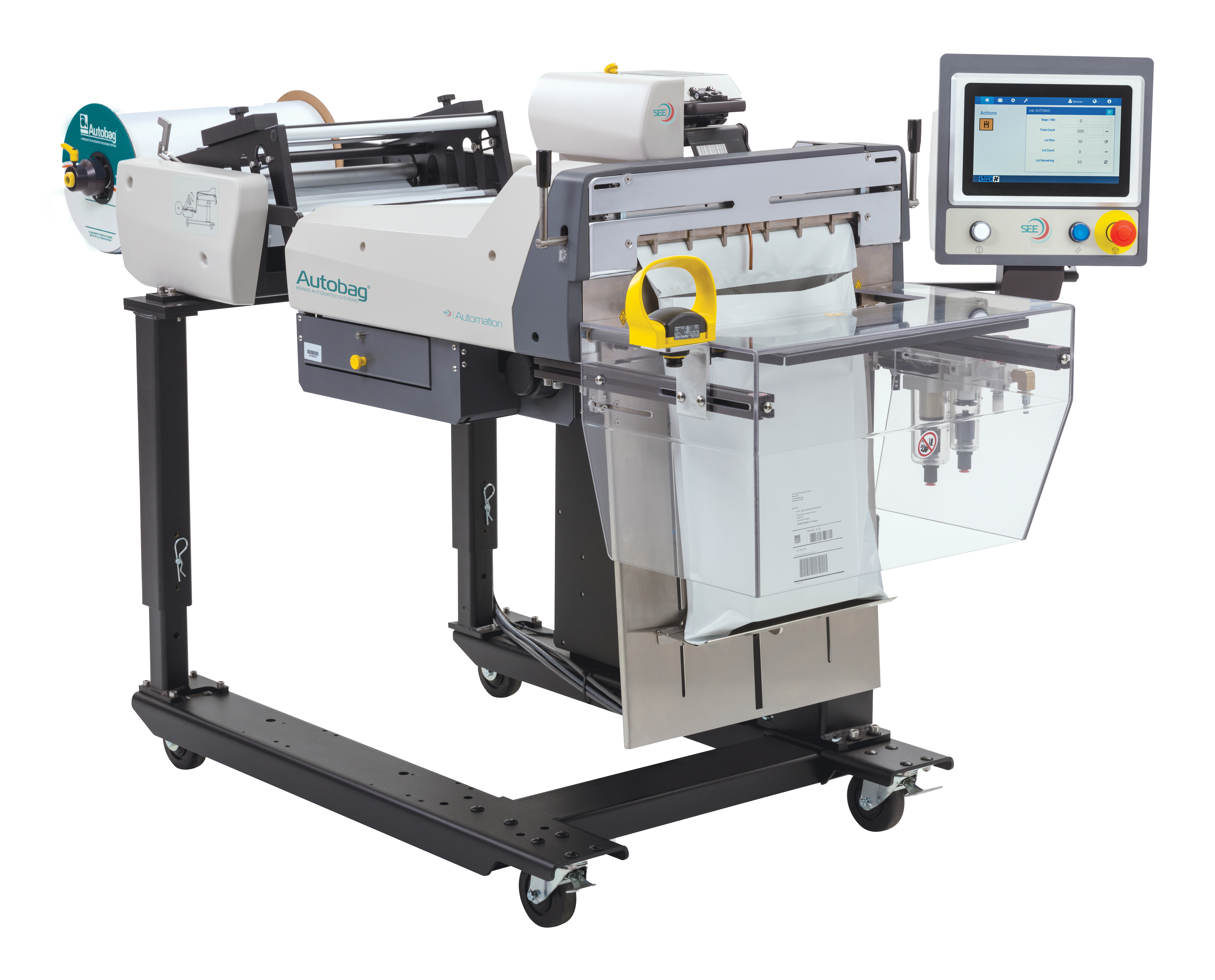

650 Wide Bagging and Printing System
AUTOBAG® brand 650 wide bagging system is ideal for e-commerce order fulfilment, short-run and build-on-demand applications. Next-bag-out printing is achieved with an advanced thermal transfer imprinter positioned directly over the next large bag to be loaded, reducing changeover and eliminating the need for a separate labelling operation. This system is capable of cycling at speeds up to 40 bags per minute.
- Next-bag-out printing prevents product queuing and reduces waste
- Multi-position unwind with tension control simplifies changeover
- 40.6 cm wide bag loading area is ideal for large products
- Width: 105.7 cm (adjustable)
- Height: 105.6 cm to 119.6 cm
- Length: 176.5 cm
- Pass-through: 15.2 cm max
- Bag thickness: 1.09 mm to 4 mm
- Bag sizes: W 10 cm to 40.6 cm, L 13.9 cm to 68.5 cm
- Weighing capacity: Up to 2.2 kg (with load shelf)

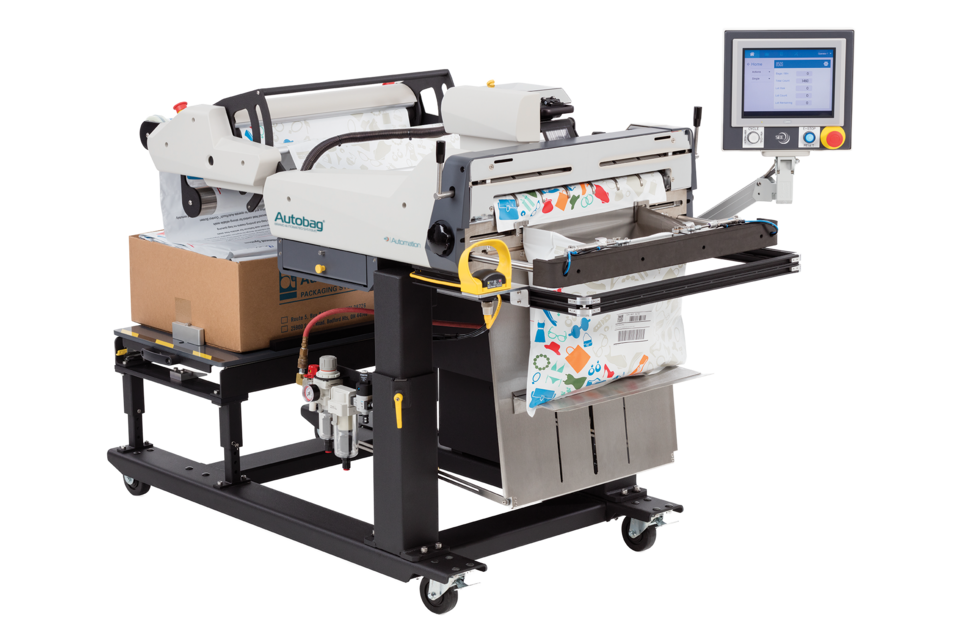

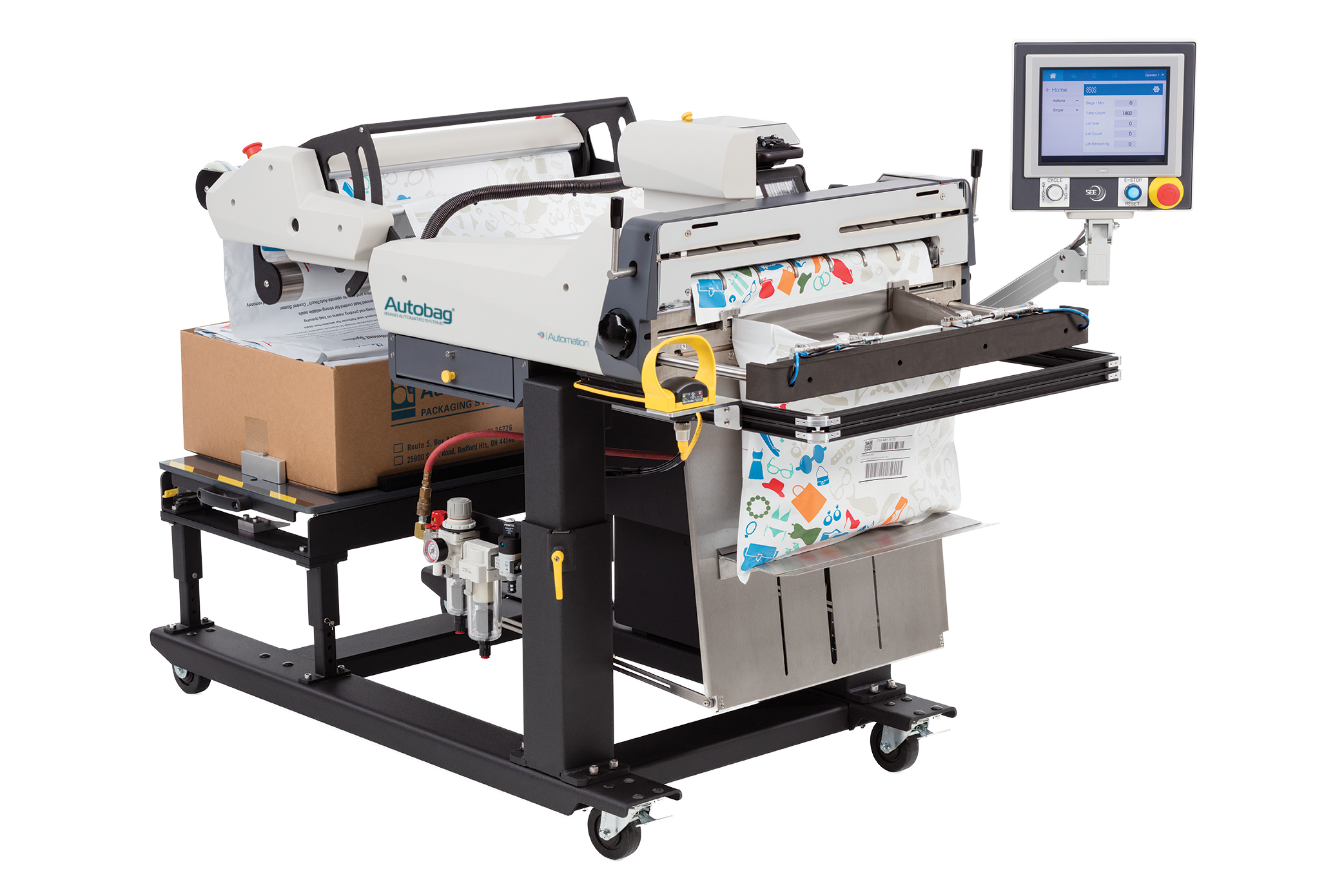

850S Bagging and Printing System

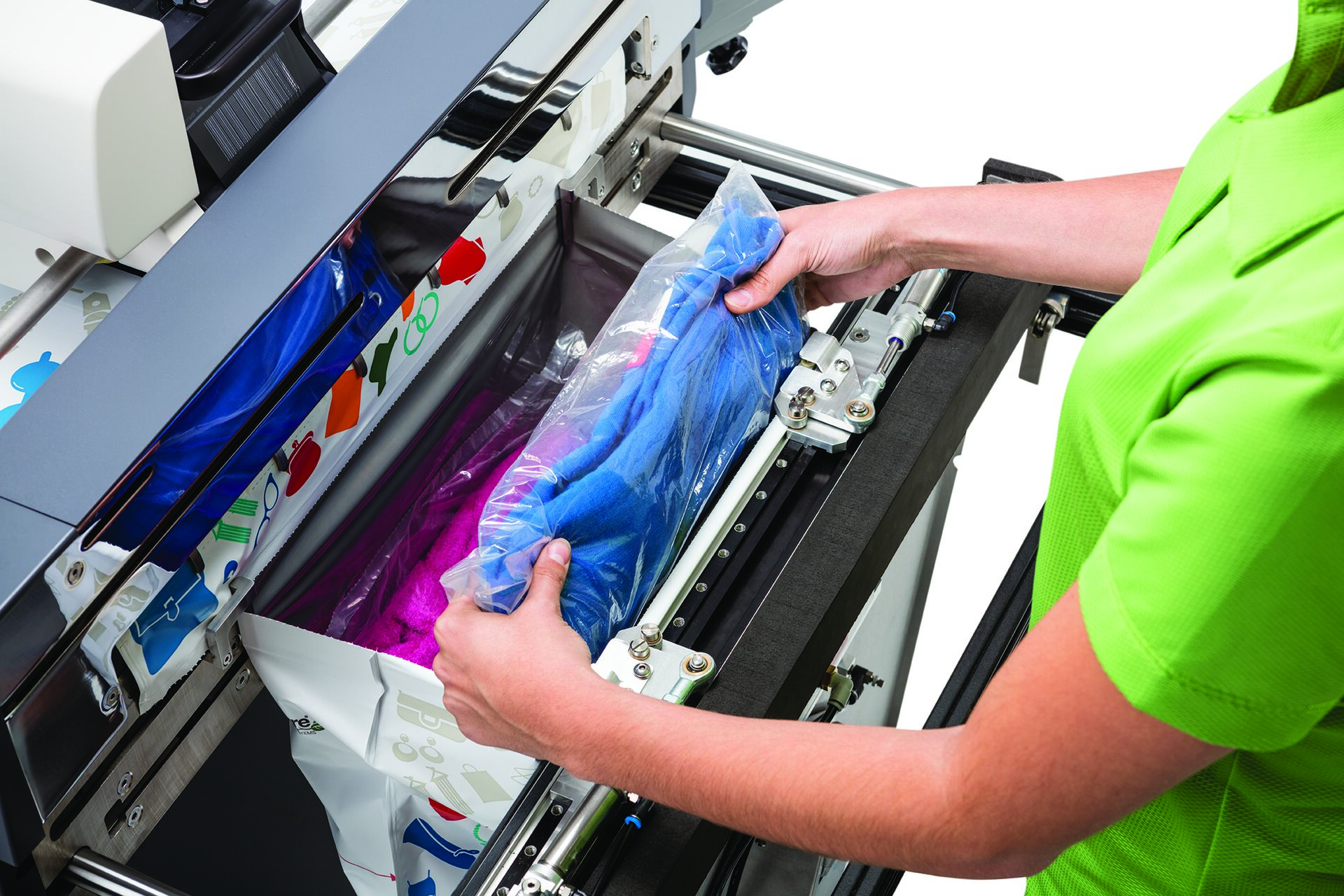

The AUTOBAG® brand 850S bagger is uniquely designed to provide enhanced packaging productivity for mail order fulfilment and e-commerce applications. Capable of running bags up to 55.8 cm wide, this system features a breakthrough bag opening technology that securely grips and holds the open bag in place. This creates a large, square opening (up to 28 cm x 28 cm) that allows for easy loading of single or multi-line orders. Next-bag-out printing is achieved with an advanced thermal transfer imprinter positioned directly over the next bag to be loaded. This ensures accuracy and efficiency in fulfilment applications that require frequent product and label changeovers, and prevents product queuing.
- Capable of running bags up to 55.8 cm wide
- High quality seals with coordinated seal flattener for wrinkle-free seals
- Continuous film control with a sophisticated tension control unit that centres and monitors the position of the film throughout the entire bagging process
- Width: 115 cm (adjustable)
- Height: 110 cm to 140 cm
- Length: 182.8 cm
- Pass-through: Up to 27.9 cm
- Bag thickness: 1.09 mm to 4 mm
- Bag sizes: W 25.4 cm to 55.8 cm, L 25.4 cm to 66 cm
- Weighing capacity: Up to 4.5 kg (with load shelf)
