Shrink Wrap L-Sealers
01 Overview

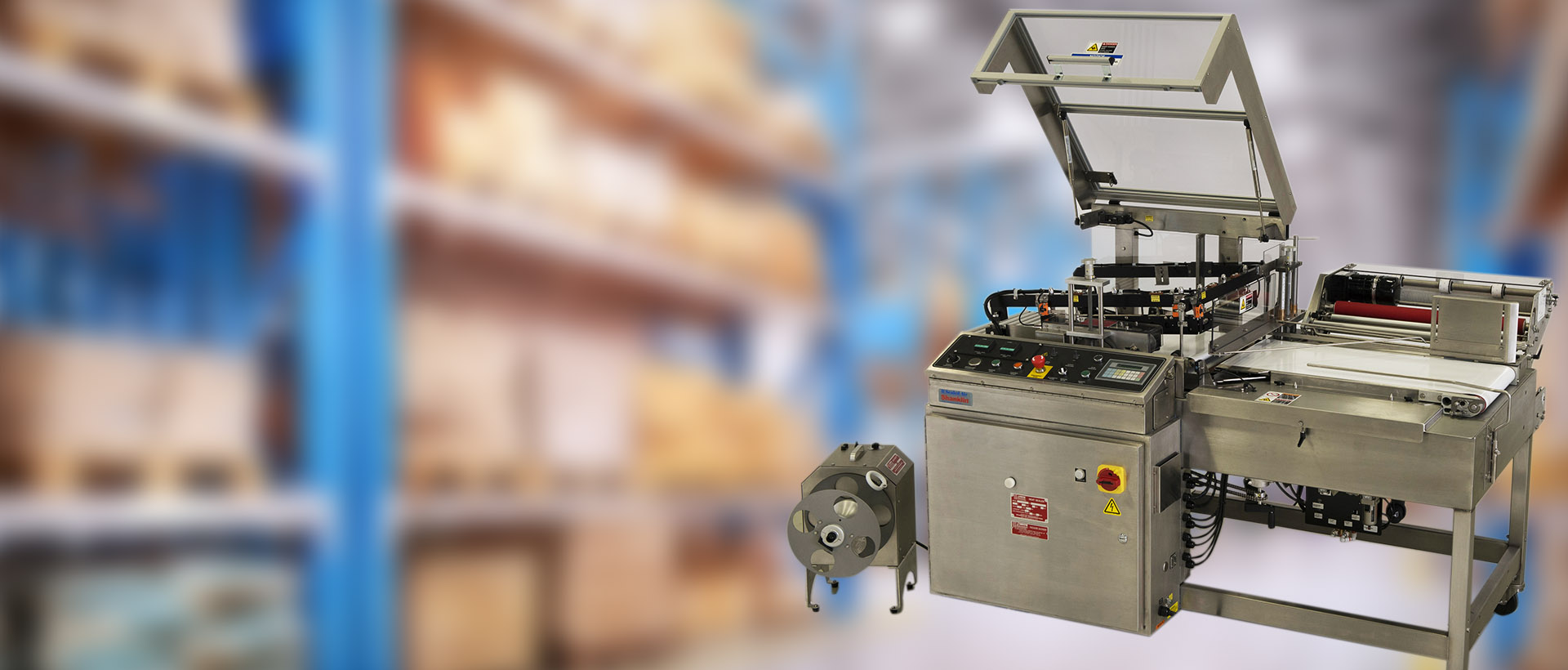

SEALED AIR® brand Shanklin® shrink wrap L-sealers can seal up to 35 packs per minute.
SEALED AIR® brand Shanklin® shrink wrap L-sealers include fully automatic models capable of producing shrink wrapped packages without an operator, semi-automatic shrink wrap machines that require operator assistance, and multi packing models to group multiple products together. Pair your Shanklin® automatic L-sealer with a Shanklin® shrink tunnel for superior wraps every time. Need an automated solution? A selection of Shanklin® shrink machine models can also run our StealthWrap opaque shrink film.
- Available in stainless steel construction
- Automatic, semi-automatic, and multi-packing models
- Ideal for low-volume shrink operations
- Accommodates a wide variety of product types and sizes
- Rugged and dependable Shanklin® shrink machines maximize productivity and minimise downtime
- Seals up to 35 packages a minute, depending on shrink L-sealer model
02 Product Lines
Product Range
Shanklin Automatic L-Sealer
Shanklin Semi-Automatic L-Sealer
Shanklin Multipacker L-Sealer

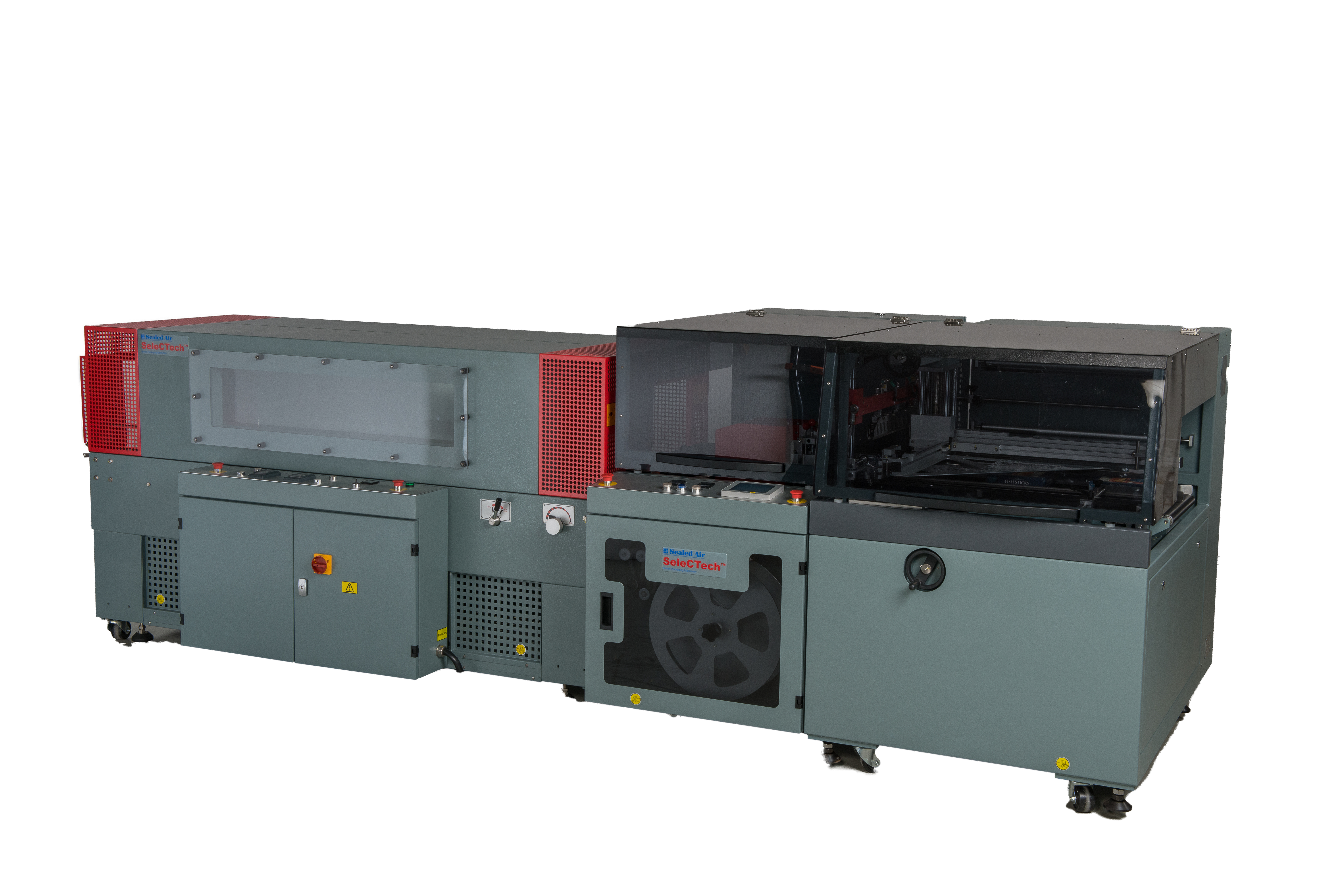

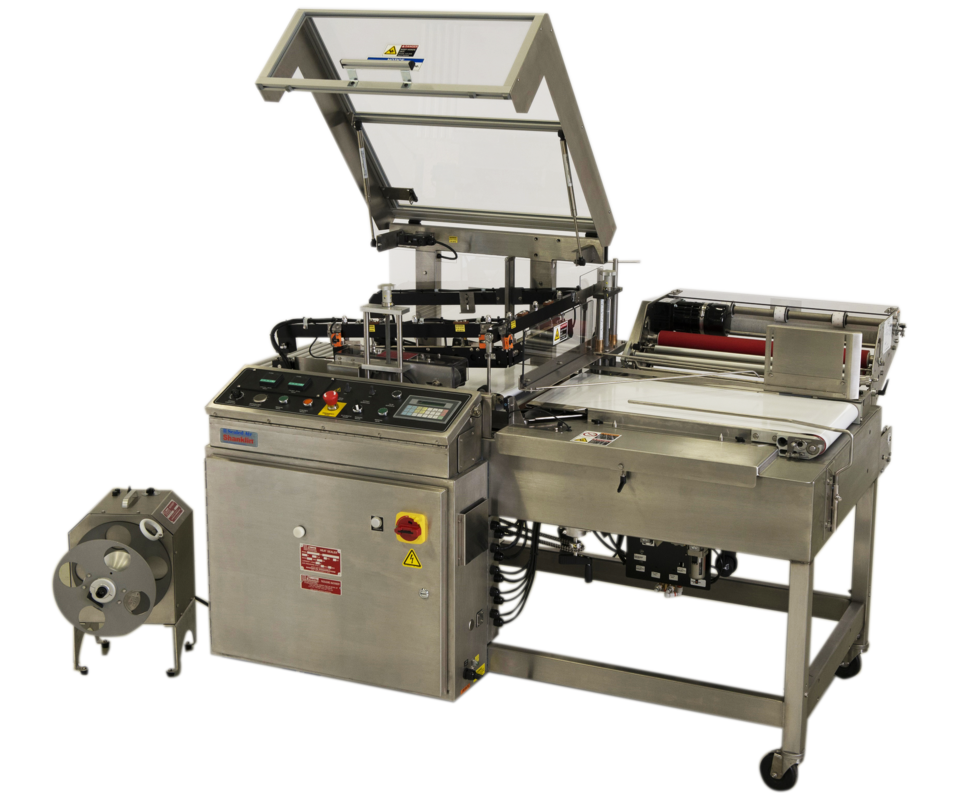

Shanklin® Automatic L-Sealer
Shanklin® automatic L-sealers — models A-26A, A-27A, and A-28A — are compact, rugged, and versatile with gentle product feed and straight-line product flow. Automatic shrink wrap sealers feature conveyor-fed operation. The L-seal design provides great flexibility and quick product change. Each accepts randomly spaced products, fed either automatically or by hand.
- Picture-based touchscreen and programmable controllers for simplicity of wiring and ease of troubleshooting
- Photoelectric sensor system automatically compensates for package length change
- Automatic film advance system allows light, flexible products to be fed through the machine with ease
- Easy product and size changeover
- Produces at speeds up to 35 packs per minute
- Model A-26A
- Seal size: 38.1 cm W x 53.3 cm L
- Model A-27A
- Seal size: 53.3 cm W x 83.8 cm
- Model A-28A
- Seal size: 83.8 cm W x 109.2 cm
- Optional height kit and closing conveyor available on select models

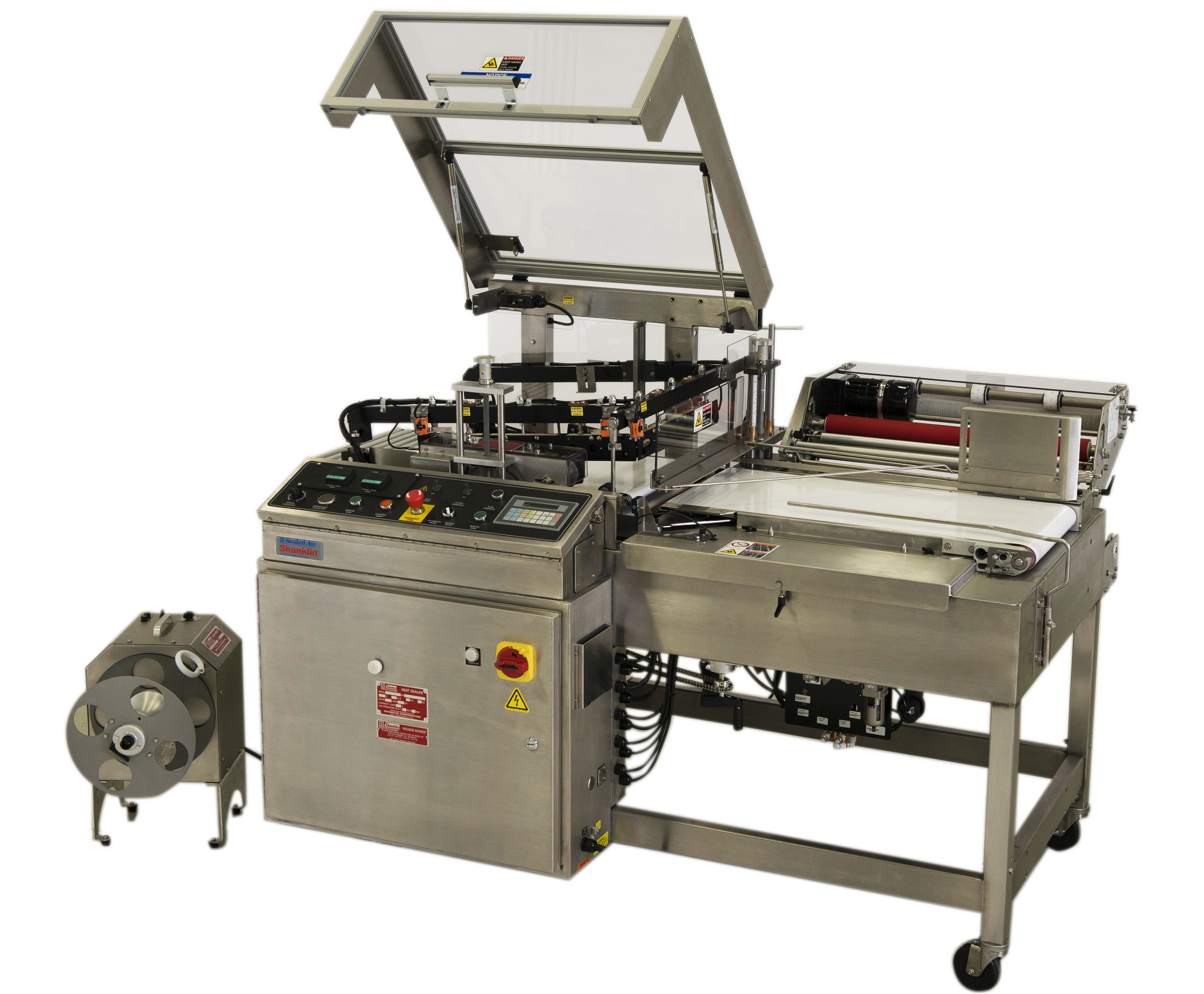

Shanklin® Semi-Automatic L-Sealer
Shanklin® semi-automatic L-sealers are built for applications that require packaging line speeds approaching those of fully automatic sealers, but where equipment cost is a factor or where the product does not lend itself to automatic handling. Higher production speeds are achieved with several unique features normally found only on our fully automatic L-sealers, like the power film unwind and the film inverting head.
- Semi-automatic operation
- Simple to set up and maintain
- Designed for quick, easy changeovers
- Rugged construction ensures years of efficiency
- Produces at speeds of 15 to 20 packs per minute
- Model S24B/S24BL
- Seal Size: 38.1 cm W x 83.8 cm
Shanklin® Multipacker L-Sealer
Shanklin® multipacker L-sealers makes a single package of multiple products by creating groupings of different quantities on the shrink machine. This automatic shrink wrap machine offers an accumulating conveyor and specialized right-angle inserting unit for feeding groups of products into the sealing area. Once the seal is made, the conveyor moves the pack to the shrink tunnel for a neat, tight, fully overwrapped grouping of products.
- Full overwrap shrink bundling
- Automatic operation and product orientation
- Produces product at speeds of 10 to 15 bundles per minute
- Model M-22
- Max bundle size: 38.1 cm W x 38.1 cm L x 20.3 cm H (38.1 cm W x 60.9 cm L x 20.3 cm H multi-stroke)
