Bringing flexibility, reliability and high productivity to large bag packaging applications

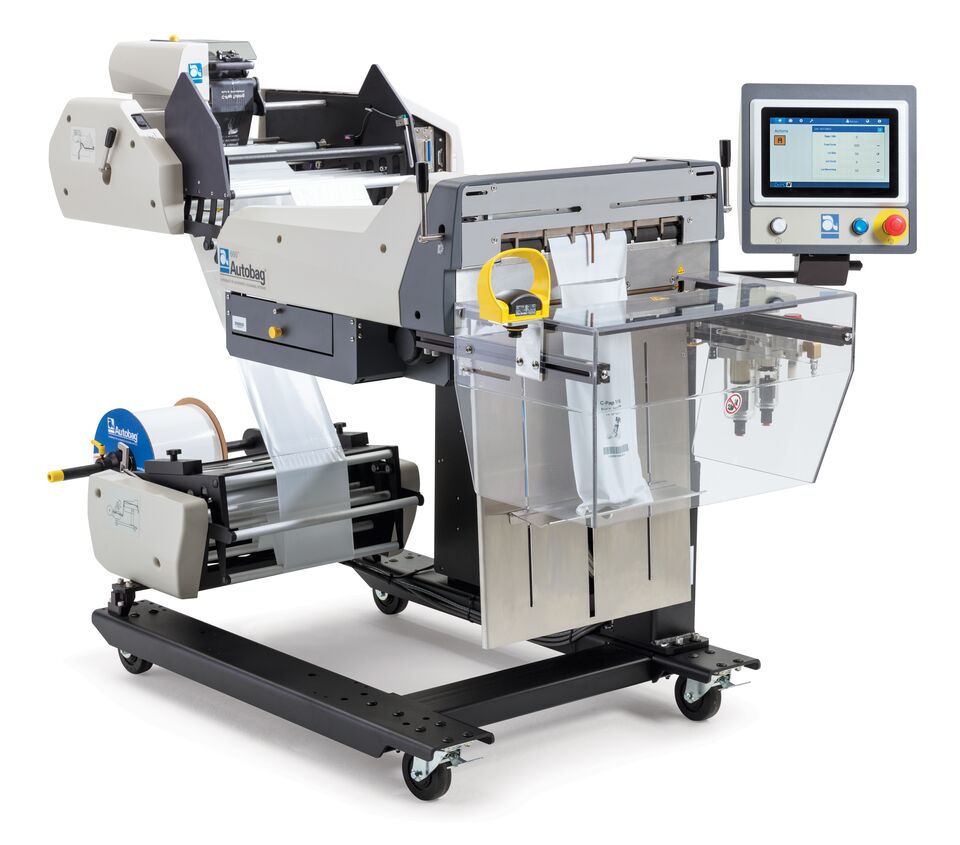

The AUTOBAG® Brand 600 High-Speed Bagging System is a technologically-advanced, wide automatic filling and sealing machine designed for reliability, flexibility and optimizing packaging throughput.
Bag Size Options
From 4” W x 16” L to 5.5” W x 27” L
(36 in. L unsupported)
- Cycling Speed Capability
Over 65 bags per minute
Overview
The AUTOBAG® Brand 600 High-Speed Bagging System is a technologically-advanced, wide automatic filling and sealing machine designed for reliability, flexibility and optimizing packaging throughput.
Capable of cycling at speeds over 65 bags per minute, this system delivers maximum machine uptime while lowering total cost of ownership.
State-of-the-art engineering has led to an innovative, inherently safe design. No light curtains or double palm switches are required to achieve safe hand-load operation. The AUTOBAG® Brand 600 is configurable for left- or right-hand access to the HMI, cycle switch and bag loading area, improving ergonomics and operator productivity.

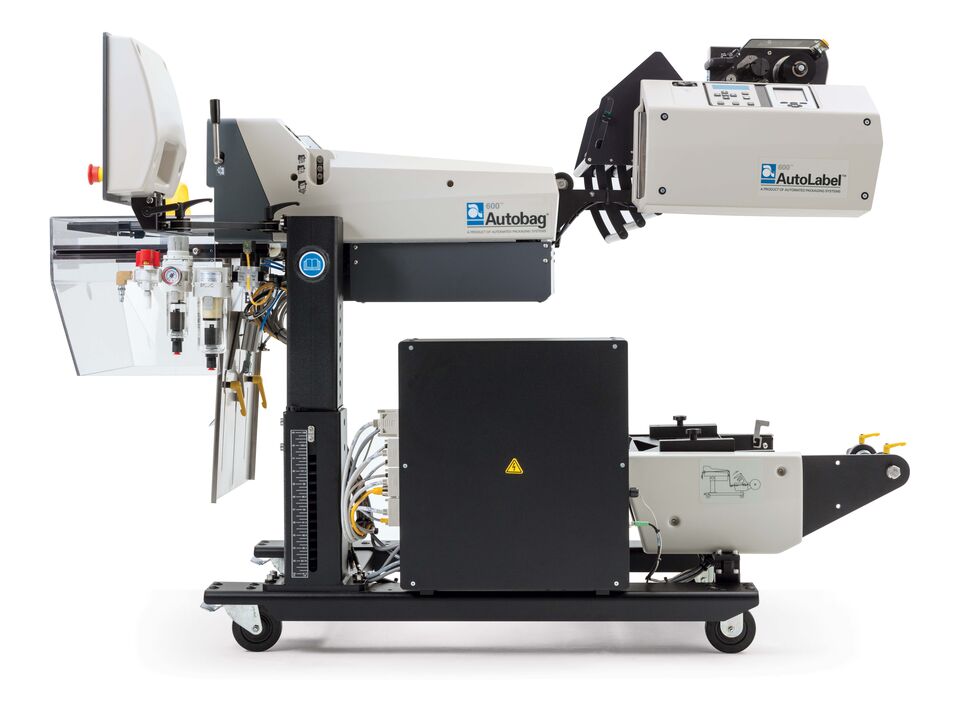

Flexibility has been built into the system, allowing the AUTOBAG® Brand 600 to meet the needs of any large packaging operation. The open design makes this bagger highly compatible with Autobag and third-party counters, scales and infeeds. The AUTOBAG® Brand 600 can also be networked to facilitate full pack station integration and central monitoring. When integrated with the AutoLabel 600™ inline imprinter, a complete Print-and-Pack™ station is achieved.
A straightforward, simple design with very few moving parts reduces lifetime cost and improves reliability, while on-board diagnostics and modular components simplify maintenance.
When used with genuine AUTOBAG® Brand pre-opened bags-on-a-roll or bags-in-a-box, the AUTOBAG® Brand 600 ushers in the next evolution of high-quality, reliable and flexible wide bag packaging, backed by the industry’s most comprehensive engineering and field service network.
Features and Benefits
- Easily integrates with inline printers, counters, scales, and conveyors for semi- to fully-automatic bagging
- Multi-position unwind with tension control simplifies changeover
- 16″ wide bag loading area is ideal for large or bulk products
- AutoTouch™ Control Screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring
- Processor controlled servo motors, ethernet-capable networking, and flexible mechanical design streamline integration
- Compact footprint minimizes floor space
- Simple height adjustment and casters for operator comfort and portability
- A 45 degree tilt option is available for orienting long or delicate products
- Adjustable pass-through up to 6″ for maximum flexibility and packaging efficiency
- Newly designed bag sealer area combined with improved temperature control and optional seal-flatteners ensure consistent, high-quality seals
- We maintain over 100 styles of stock bags and manufacture custom bags that include printing in up to 10 colors and a variety of special features
- Optional Additions: range of infeed funnels, seal flatteners, raised unwind, SimpleCount™ counting system, product load tray, bags-in-a-box adapter
Specifications
410 lbs.
Universal Input: 110V to 240V VAC, 50/60 Hz
Power Consumption: 500 Watts (VA) max
5 CFM/80 psi of clean, dry air

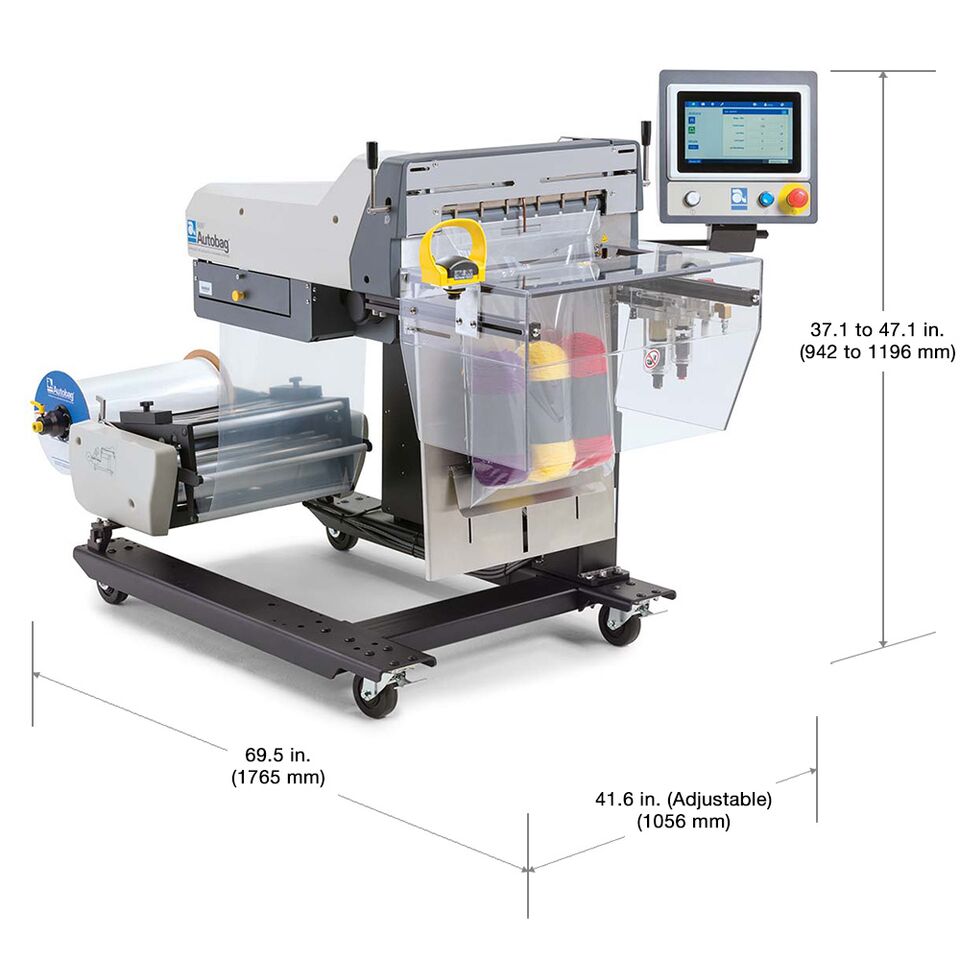

41.6 in. (Adjustable)
37.1 to 47.1 in
69.5 in.
6 in. max
1.09 – 4.0 mil
W 4 to 16 in. L 5.5 to 27 in (36 in. L unsupported)
Up to 5 lbs. (with load shelf)
Downloads
Get the most out of our solutions with these digital resources.
Related Products

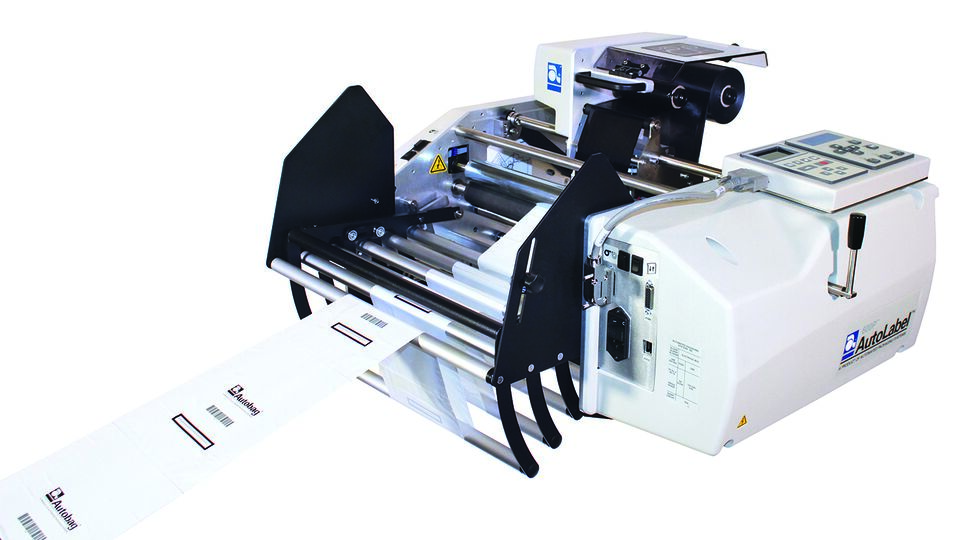

AutoLabel 600P™
The AutoLabel 600P™ thermal transfer printer enables direct inline printing of graphics, text, & barcodes.

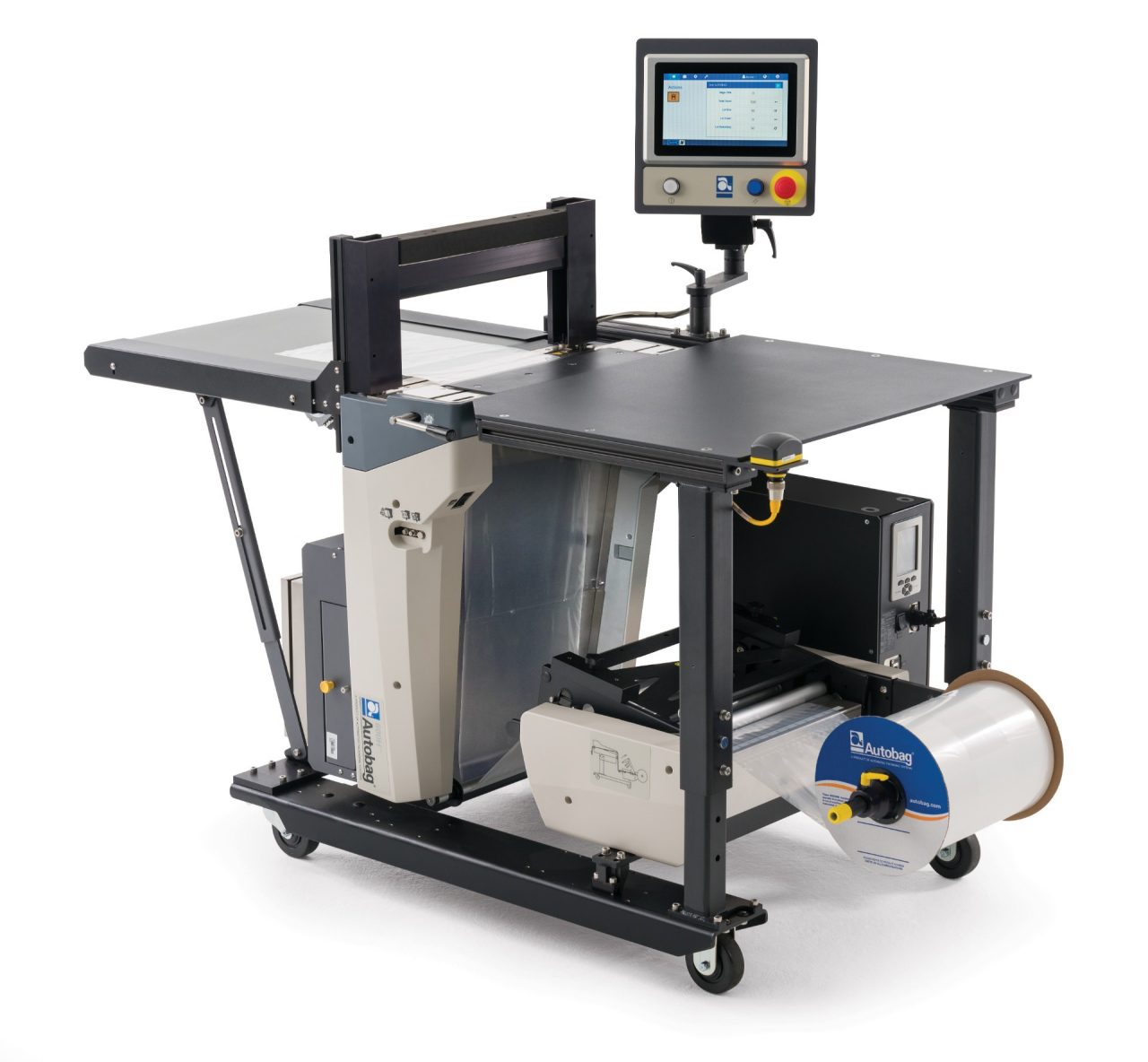

AUTOBAG® Brand 600H Horizontal
The AUTOBAG® Brand 600H Horizontal is an automatic filling & sealing machine that can run 16" wide bags.

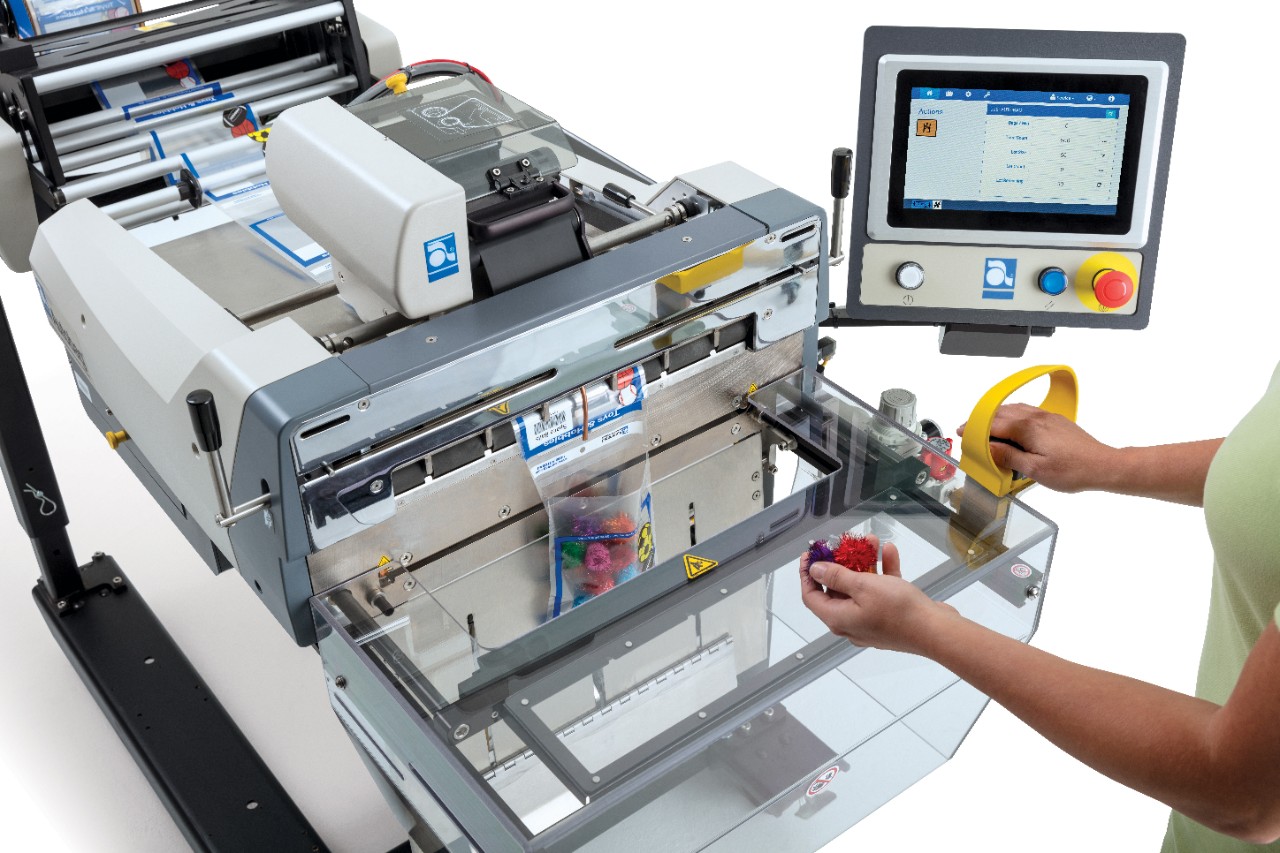

AUTOBAG® Brand 650
