Vertical Rotary Vacuum Packaging
100% process yield, minimizes air pockets and produces a highly-dense product ideal for slicing.
- Hygienic Filling
Automated filling and ability to cook-and-ship reduces risk of contamination by limiting human contact.
- Efficient Vacuumizing and Sealing
Rotary design provides for continuous operation up to 20 cycles per minute with one operator.
Overview

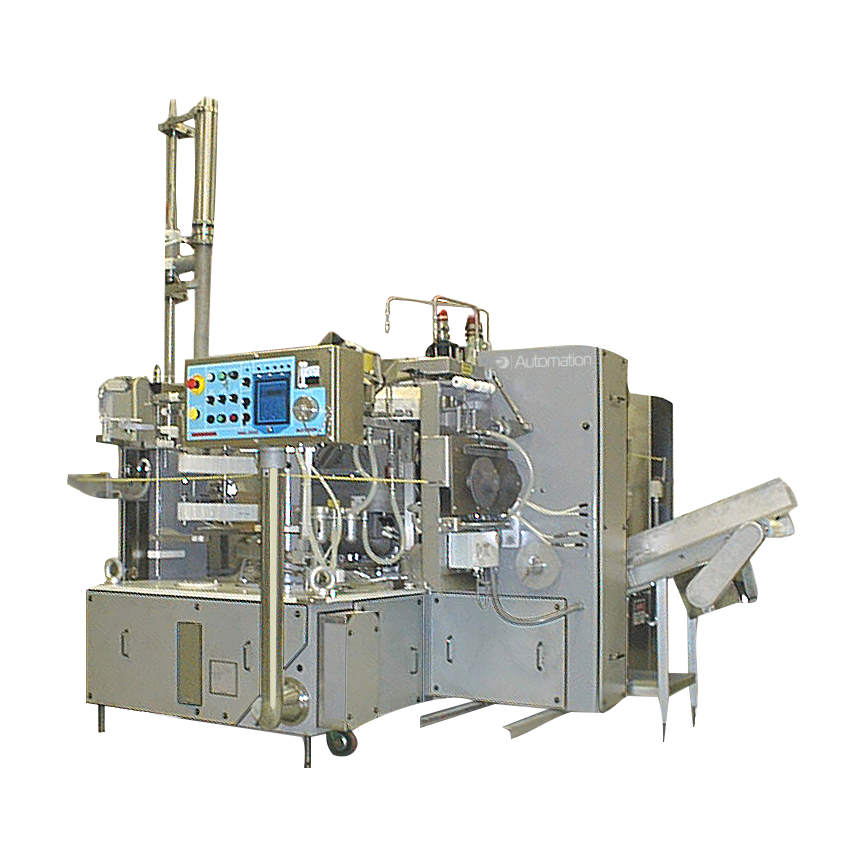

Leveraging more than 40 years of rotary vacuum packaging technology and innovation, the CRYOVAC® brand 8490 vertical rotary vacuum system is a high-speed, automated system for all types of cook-in-bag products.
This unique system automatically positions and fills each bag with viscous liquid or slurry from the bottom, then advances it to the rotating vacuum chambers for vacuumizing and heat sealing the package. This process helps minimize air pockets to produce a very dense product ideal for slicing with no metal clip closure needed.
When using CRYOVAC® brand cook-in barrier bags, this system offers 100% process yield with superior oxygen barrier and high integrity seals that protect product freshness, color, and flavor throughout distribution.
Features and Benefits
- Only one operator required
- Bottom-up filling reduces air pockets
- Automatically fills and vacuumizes each bag
- Well-suited for vacuum sealing cook-in bag products like processed meat and deli loaves
- Ideal for pumpable products such as emulsions; sectioned, formed, and whole-muscle applications
Specifications
The CRYOVAC® brand 8490 vertical rotary vacuum chamber machine complies with FDA requirements for food packaging. Certificate available on request.
- 20 cycles per minute
- dependent on product application
up to 15 pounds
- Length: up to 21” (533 mm)
- Width: up to 12” (305 mm)
3 Phase, 230 V, 60 Hz, 50 AMP
100 psig, 20 SCFM, ¾” line (x2)
½ GPM – hose connection to building drain system required
Downloads
Get the most out of our solutions with these digital resources.
Frequently Asked Questions
A vertical rotary vacuum system is designed specifically for packaging pumpable food products such as emulsions or formed and whole-muscle applications that are then cooked in the package. Specifically for emulsified foods such as processed deli meat, the vertical filling system helps eliminate air pockets to create a consistently shaped, dense loaf for slicing after the product is cooked.
The CRYOVAC® Advanced Maintenance Program (AMP) is a proactive, preventive maintenance plan designed to increase uptime, enhance performance, and improve efficiency for select equipment models in our protective and food packaging portfolios.
Using Smart Link technology, AMP offers a secure, cloud-based platform for processors to monitor real-time production data that is essential for improving process control and operational metrics.
The maintenance program includes a comprehensive service plan that features regularly scheduled equipment audits, reconditioning, and catastrophic parts protection for certain equipment models. With an affordable monthly service fee, AMP helps processors enhance production efficiency, maintain consistent maintenance expenses, reduce machine downtime and production disruptions, and lower energy costs.
Still have questions?
Contact Us
Get answers to common questions about our company, products, services, and beyond by filling out the form below. A dedicated representative will contact you soon to better understand and address your specific needs..
Your Details
Related Products

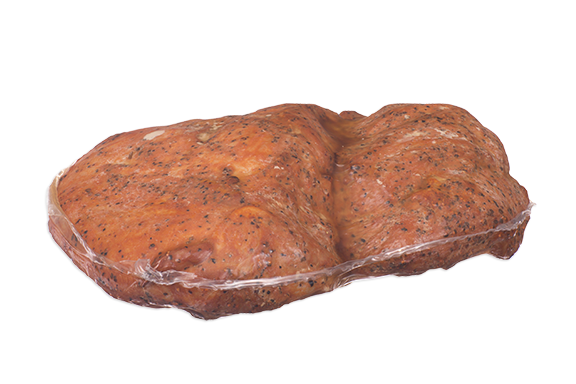

Cook-In Bags
Easy to fill, seal and cook. Maintains seal integrity and shape at cooking temperatures up to 12 hours.
Bag Dispensers and Loaders
Explore bag dispensers and product loaders that increase productivity and minimize downtime.
Shrink Tunnels
The final step to achieve a skin-tight, durable, vacuum-sealed bag with shelf impact and visual appeal.

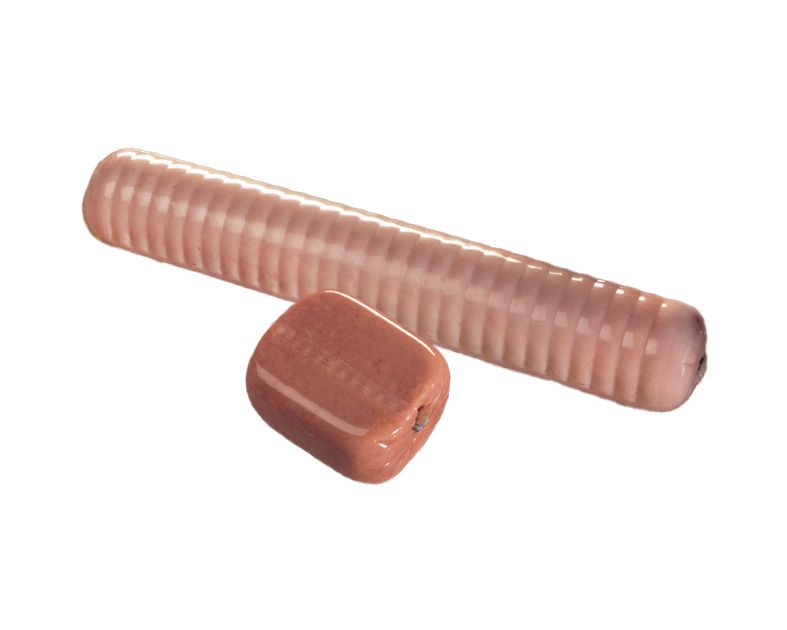

Cook-In Casings
