Shrink Tunnels

SEALED AIR® brand Shanklin® shrink tunnels are well suited to a variety of shrink wrap applications.

Get Started

01 Overview



SEALED AIR® brand Shanklin® shrink tunnels are well suited to a variety of shrink wrap applications.

Shanklin® shrink tunnels are recognized for durability, design excellence, and quality manufacturing. Our shrink wrap tunnels are flexible, dependable, and ready to take on your toughest shrink wrap challenges. Shanklin tunnels are an ideal match for our automatic wrappers and your choice of varying tunnel passage dimensions ensures that there's a model just right for your application.

  • Digital temperature control for +/-2 degree tolerance
  • Unparalled air velocity and control options
  • Fin strip heaters no cool down cycle time
  • Continuous 2-inch single piece insulation — no hot/cold spots
  • Inverter rated AC blower motor with balanced blower wheel
  • Quality design and construction
  • Available in stainless steel construction

  • Offered in varying tunnel sizes and speeds, tunnel passage dimensions, and run different types of shrink film

02 Product Lines

Shrink Tunnels

Compare Our Product Lines

Single-Chamber Shrink Tunnel



  • High-speed wrappers present multiple shrink challenges. Shrinking high volume, heat absorptive surfaces, or irregular shaped packages is what Shanklin® single-chamber shrink tunnels have been designed for
  • A longer single chamber increases shrink capacity at higher speeds, and fully controllable air temperature and velocity allow you to customize shrinking conditions to the application

Dual-Chamber Shrink Tunnel



  • Customize the shrink conditions to each unique package with two independently controlled tunnel temperatures
  • Shanklin® dual-chamber shrink tunnels solve the most persistent shrink challenges: keeping up with high-speed automatic wrappers, processing products with heat absorptive surfaces, and tightly wrapping irregularly shaped products

Large-Capacity Shrink Tunnel



  • Shanklin® large-capacity shrink tunnels are made with varying heights and widths, making these spacious tunnels ideal for wide, low-profile, or bulky products

shrink tunnels

Single-Chamber Shrink Tunnel

High-speed wrappers present multiple shrink challenges. Shrinking high volume, heat absorptive surfaces, or irregular shaped packages is what Shanklin® single-chamber shrink tunnels have been designed to perform with ease. A longer single chamber increases shrink capacity at higher speeds, and the fully controllable air temperature and velocity allow you to customize shrinking conditions to the application.

  • 60-in single-chamber tunnel facilitates increased shrinking capacity at higher speeds
  • Fast conveyor speeds, from 25 to 150 ft per minute
  • Powerful hot air system keeps pace with the most demanding use
  • T-81 tunnel passage is slightly wider and higher than that of the T-71
  • T-71 available in stainless steel construction
  • Pairs with the Shanklin Triumph 2 Wrapper

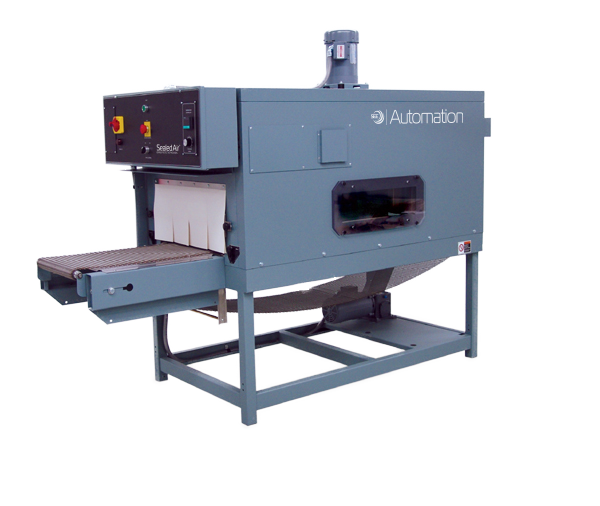

Model T-71

  • Tunnel passage: 10 in H x 22 in W x 60 in L
  • Tunnel size: 36 in W x 68.5 in H x 92 in L



Model T-81

  • Tunnel passage: 12 in H x 28 in W x 60 in L
  • Tunnel size: 42 in W x 68.5 in H x 99 in L

Brochure

Shrink Tunnels

Dual-Chamber Shrink Tunnel

Customize the shrink conditions to each unique package with two independently controlled tunnel temperatures. Shanklin® dual-chamber shrink tunnels solve the most persistent shrink challenges: keeping up with high-speed automatic wrappers, processing products with heat absorptive surfaces, and tightly wrapping irregularly shaped products.

  • High-speed, dual-chamber tunnel, each with independently controlled temperature and air velocity
  • Two models offer varying tunnel passage dimensions for diverse shrink wrap applications
  • Available in stainless steel construction
  • Pairs with the Shankin Hyspeed Servo Series

Model T-62

  • Tunnel passage: 10 in H x 18 in W x 61 in L
  • Tunnel size: 38 in W overall x 38 in H above conveyor

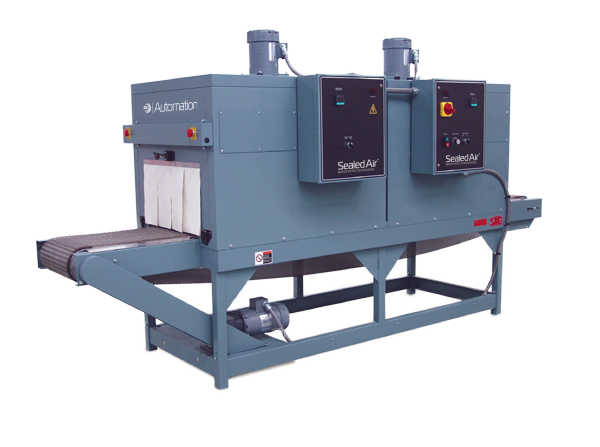

Model T-72H

  • Tunnel passage: 12 in H x 22 in W x 84 in L
  • Tunnel size: 43 in W overall x 41 in H above conveyor

shrink tunnels

Large-Capacity Shrink Tunnel

Shanklin® large-capacity shrink tunnels are made with varying heights and widths, making these spacious tunnels ideal for wide, low-profile, or bulky products.

  • Precisely engineered hot air circulation pattern produces tightly shrink-wrapped packages
  • Optional live roller conveyor recommended for wide, heavy products and rolls wrapped in polyolefin or PVC shrink films
  • Pairs with the Shanklin automatic L-sealer

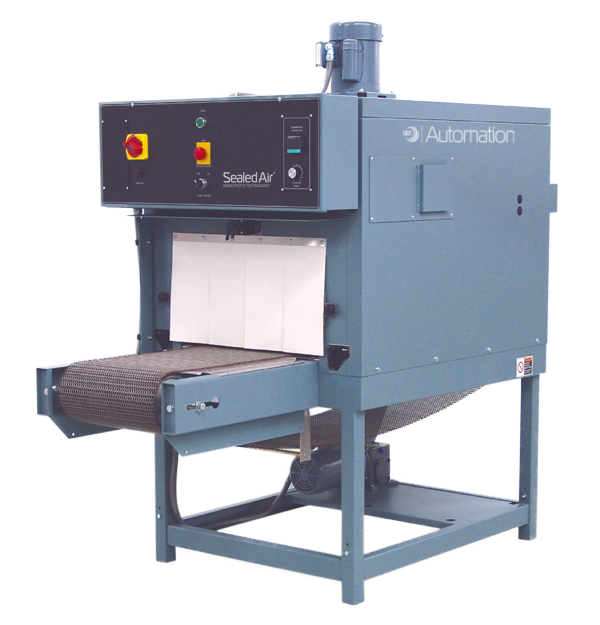

Model T-7H

  • Tunnel Passage: 12 in H x 22 in W x 42 in L



Model T-9

  • Tunnel Passage: 6 in H x 36 in W x 14 in H (20 in H also available)
