AutoLabel 500P Thermal Transfer Printer

AutoLabel 500P Thermal Transfer Printer

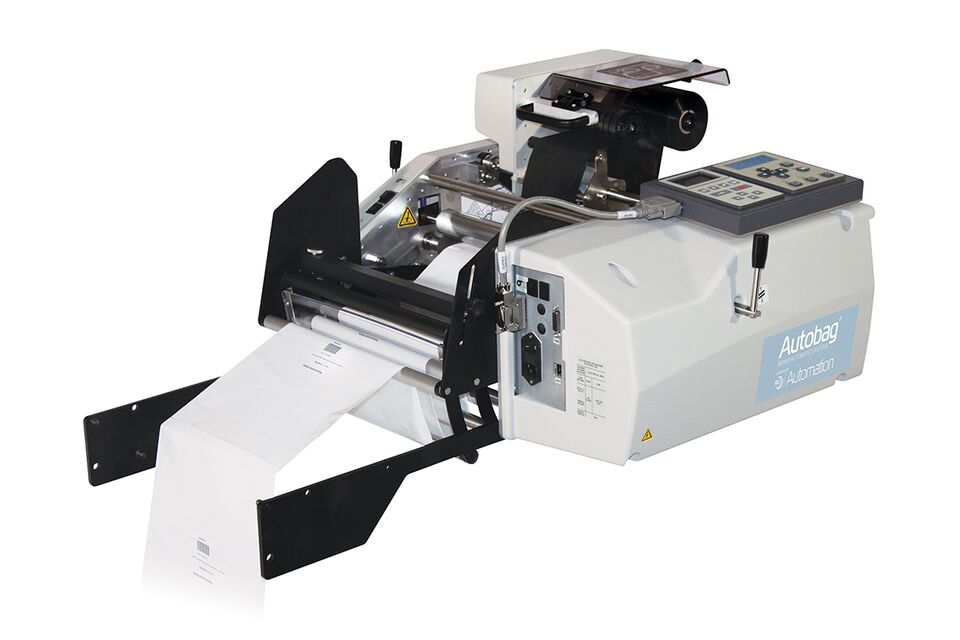

The AutoLabel 500P thermal transfer printer enables inline printing of graphics, text and barcodes directly on the AUTOBAG® Brand bag, eliminating the need for a separate labeling operation, simplifying maintenance and saving on consumable costs.

Compared to previous models, the AutoLabel 500P offers up to 600 dpi print resolution and delivers improved print quality throughout the entire print speed range.  Customers will experience even more consistent print registration and more reliable bag sensing due to improved bag web flow into and out of the printer, and we have also refined our design to deliver even greater accessibility for reloading ribbon consumables and maintenance.  A 3rd Generation Ribbon Saver feature further minimizes empty space between labels, reducing waste and increasing effective ribbon roll capacity.

This printer supports both linear and 2D barcodes in a wide variety of symbologies for maximum flexibility in product identification, tracking and compliance labeling. Resident and downloadable fonts are ideal for lot or date codes and other human-readable product information; while high resolution graphics printing allows visual verification and branding on the package, as well. The AutoLabel 500P prints labels up to 4" wide x 20" long.

System-matched AutoLabel Thermal Transfer Ribbon resists scratching, smearing and flaking for durable, crisp, high quality labels. These thermal transfer ribbons extend printhead life and are specially made for use on poly bags.

 The AutoLabel 500P uses AutoLabel Designer label creation software, which makes it easy to design and manage custom labels. Enhanced database connectivity enables networked label storage, sharing and printing.

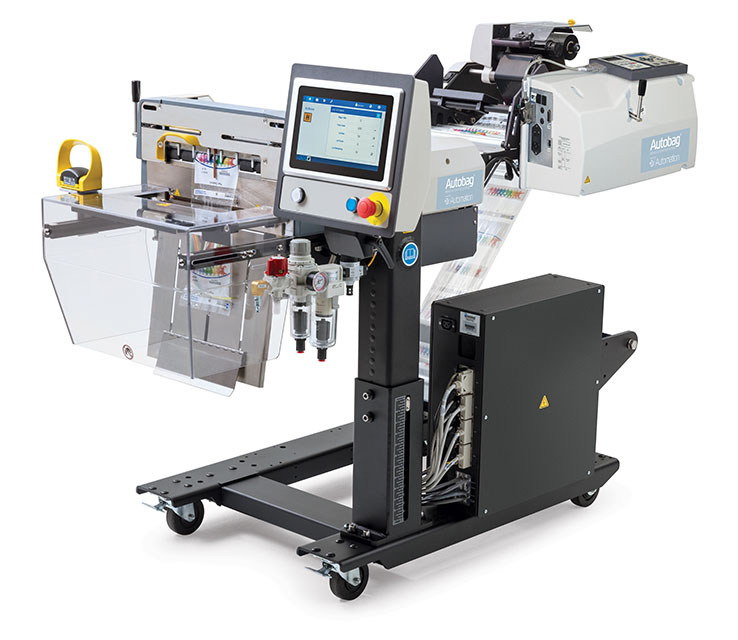

When paired with the AUTOBAG® Brand 500 High-Speed Bagging System, a complete Print-n-Pack™ system is achieved.

AutoLabel-500 Left Dimension

Features and Benefits

  • Fully integrated packaging is achieved by combining the 500P with the AUTOBAG® Brand 500 High-Speed Bagging System, along with AUTOBAG® brand or third party scales, counters or conveyors
  • Available in 203, 300, and 600 dpi resolution
  • Print Speeds up to 12" per second (600 dpi up to 6" per second)
  • Improved bag web flow for tighter registration and more reliable bag sensing
  • No air required, minimal electrical requirements
  • More flexible, accessible design for ribbon loading and maintenance
  • System-matched AUTOBAG® brand pre-opened bags, AutoLabel Thermal Transfer Ribbon, and Autolabel Design Software
  • AutoLabel Thermal Transfer Ribbons ensure the highest print quality on AUTOBAG® brand bags and extend printhead life
  • Resident Linear Barcodes: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State
  • Resident 2D Barcode Symbologies: MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar


This is a table


455 lbs. with AUTOBAG® Brand 500; 65 lbs. alone


100V to 240V VAC, 50/60

Hz Power Consumption: 800 Watts with 500;

300 Watts (VA) alone

Air Feed:

No air required


37.6 in. (Adjustable, with 500 bagger)


37.1 to 47.1 in. (with 500 bagger)


64.5 in. (with 500 bagger)

Label Size:

Up to 4" wide; up to 20" long
