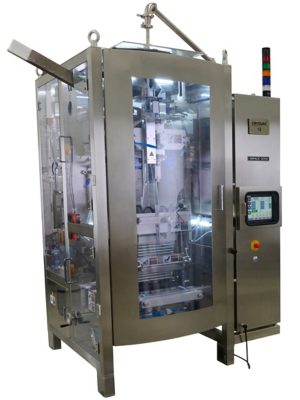

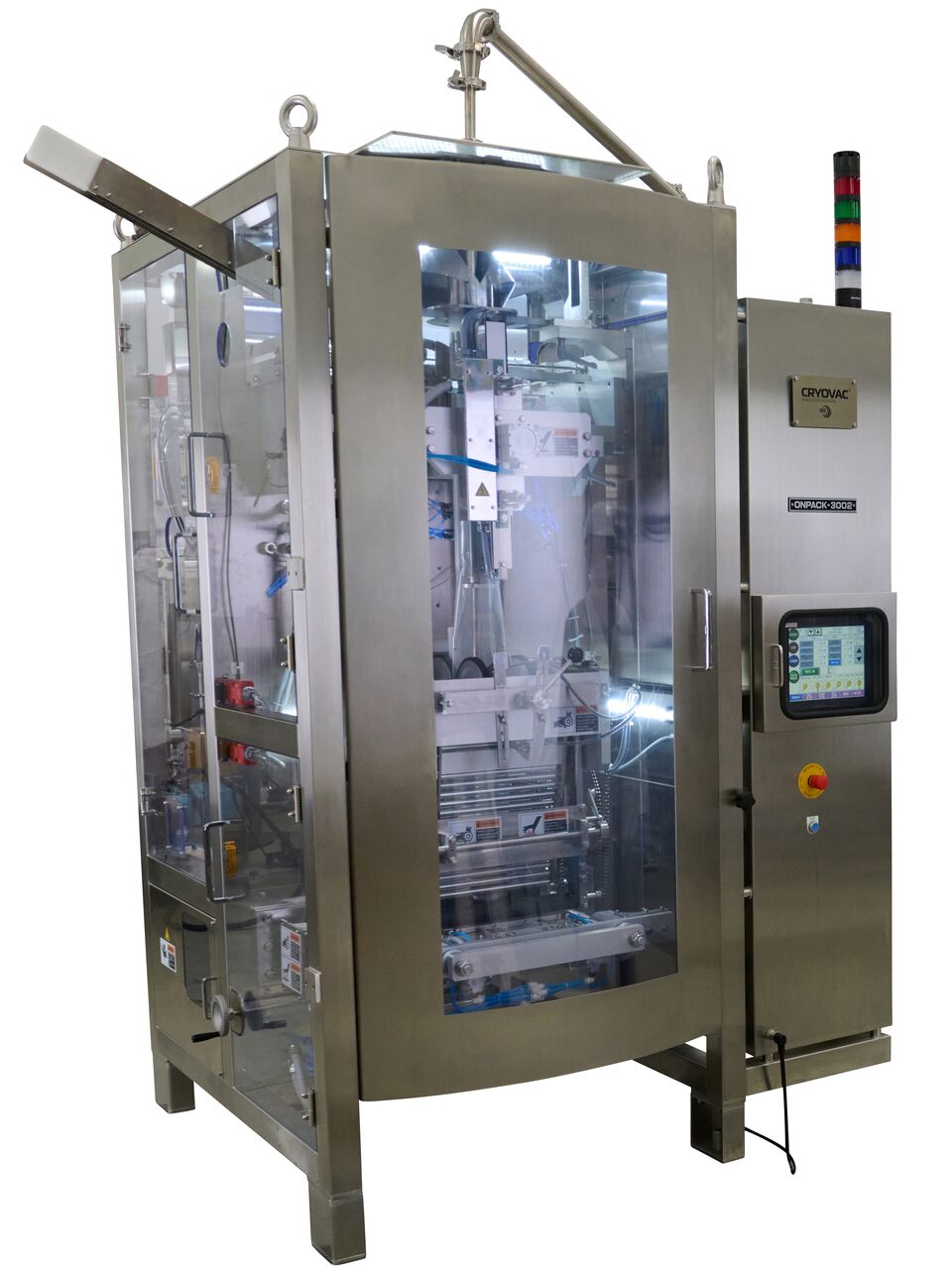

CRYOVAC® Brand Bag-in-Box Vertical Form Fill Seal System

The CRYOVAC® Brand Bag-In-Box Vertical Form Fill Seal (VFFS) System provides high-speed manufacturing and high-volume filling of CRYOVAC® Bag-in-Box Dispensing Pouches.



Featuring the inline, external application of a unique tap, the DS3002 bag-in-box system delivers a beverage dispensing package solution that stands apart from the traditional bag-in-box format.

This specialized system is designed to work seamlessly with CRYOVAC® brand bag-in-box barrier films. With no oxygen ingress until the tap is opened and the bag is pierced, our unique design ensures that an opened wine container stays fresh almost twice as long as an opened bottle.

CRYOVAC® VFFS systems qualify for our CRYOVAC® Advanced Maintenance Program (AMP) as well as SEE® Precision Yield Optimization, a proprietary, digital solution that enables you to tighten performance around target set weight. This innovative system helps reduce the amount of product giveaway resulting from process variation and provides a clear view of equipment performance that can generate significant cost savings over time.

Features and Benefits

  • Quick and easy film roll changeout for streamlined product changeovers
  • Liquid fill volumes from 1.5 to 4L at speeds up to 35ppm
  • Safe and hygienic fill process
  • Flavor protection from zero headspace, bag properties, and external tap design
  • Remote diagnostics, service plans, and SEE® Precision available

Specifications

This is a table

Package Size:

1.5 liter: 14.56” x 6.29” (370mm x 160 mm)

3.0 liter: 16.53” x 9.44” (420mm x 240mm)

Output Rate:

single lane, up to 35 ppm

Electrical Voltage:

230 VAC, 3 phase, 60 Hz, 60 AMP for machine

25 kVA isolation transformer recommended

Air Requirements:

25 cfm @ 90 psi, 1” dedicated supply line

Frequently Asked Questions

Sealed Air proudly offers both CRYOVAC® and LIQUIBOX® solutions for bag-in-box wine, and the difference between the two comes down to the equipment lines and what types of materials are used in each.

CRYOVAC® VFFS bag-in-box equipment is fed by rollstock film that creates each pouch on the machine just prior to filling. This process is fast and efficient for high volume operations and hermetically seals the package until it is punctured by the tap when ready for use. This unique opening feature, along with FS series film properties, helps extend product shelf life.

 LIQUIBOX® bag-in-box equipment is fed by a roll or box of pre-made bags. LIQUIBOX® systems are designed to be scalable and more affordable, making them an ideal choice for smaller operations or specialized applications.

Bag-in-Box wine packaging is lighter and less fragile than glass bottles, making it easier to transport for picnics and events. The cost-effective format allows easy pouring of specific amounts and once opened, bag-in-box wine can often last several weeks, compared to just a few days for traditional bottled wine.
