CRYOVAC^® Brand 8604 Dual Lane Infeed Conveyor System

Dual Infeed System

Two-lane versatility and convenience for uninterrupted flow of packaged products to rotary vacuum chamber machines.

Source Versatility

Automated packaging equipment with two, separate lanes fed by various methods including manual or automatic bag loaders or flow wrappers.

Single Operator

Our dual infeed conveyors can be integrated with our rotary vacuum chamber systems so a single operator easily can manage both pieces of equipment through a central interface.

Overview

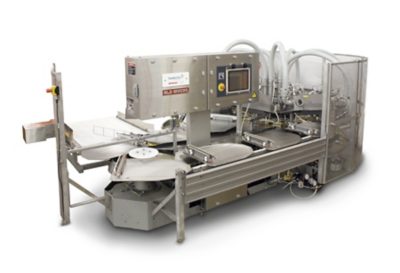

CRYOVAC^® brand 8604 dual infeed systems maximize the production capabilities of the CRYOVAC^® brand 8600 series rotary vacuum chamber machines.

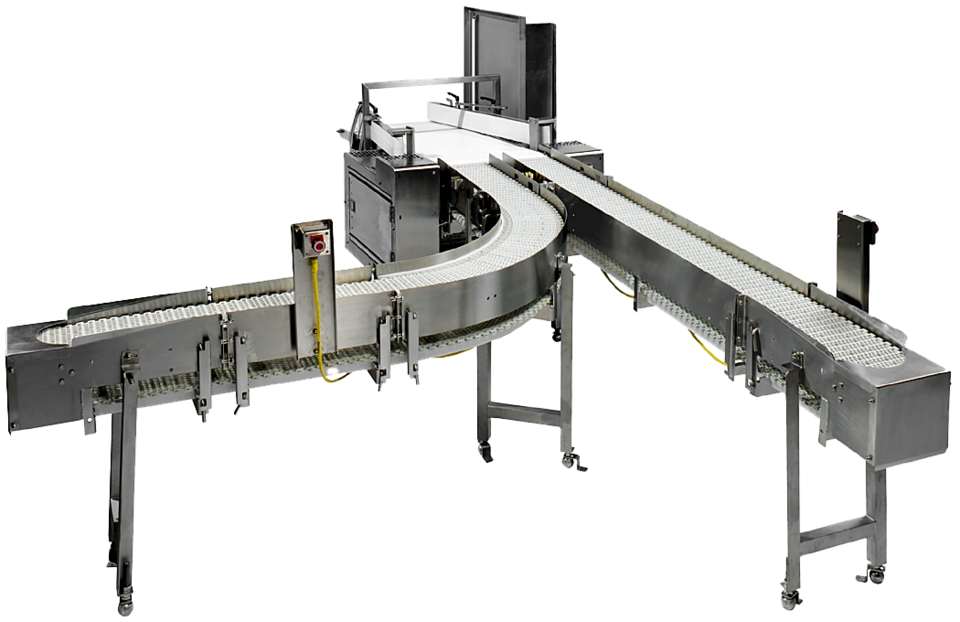

The system consists of two, separate conveyors that merge into a single infeed at the head of the rotary system.

Fed by various methods including manual and automated bag loaders and flow wrappers, dual infeeds are custom designed to provide an uninterrupted flow of packaged product from multiple loading stations. These infeed systems can be centrally controlled by the operator on the rotary vacuum chamber machine and are designed to match the speed of the rotary through an electronic sensor.

Three sizes are available to correlate with various sizes of our rotary vacuum chamber systems.

Features and Benefits

Eliminates excess labor required to position product onto platen
Eliminates tasks that are prone to injury and repetitive motion
Improves vacuum chamber platen efficiency and quality of seals
Consistent package appearance from automatic placement of product
Single-user operation of infeed and vacuum system
Eliminates costly downtime for product or bag-size changeover
Designed for optimal hygiene with easy tool free disassembly and designed to ready-to-eat sanitation standards

Specifications

The CRYOVAC^® brand 8604 dual infeed conveyors comply with FDA requirements for food packaging. Certificate available on request.

Model

Infeed Conveyor

Discharge Conveyor

8604A

10” (254 mm)

25” (635 mm)

8604B

16” (406 mm)

37” (940 mm)

8604D

13” (330 mm)

31” (787 mm)

Speed:

will match rotary vacuum chamber system
up to 60 PPM

Electrical Voltage:

3-phase, 460 VAC, 60 Hz, 15 AMP

Air Requirements:

5 SCFM @ 60 psig, 3/8” line

Downloads

Get the most out of our solutions with these digital resources.

CRYOVAC^® Brand 8604 Dual Infeed Conveyor System Equipment Product Information Sheet

Frequently Asked Questions

A dual infeed allows for more product variation during a shift without the downtime needed for a product of bag-size changeover. The lanes are positioned apart so product can come from two separate sources, and both lanes can be controlled individually from the rotary vacuum system control panel.
