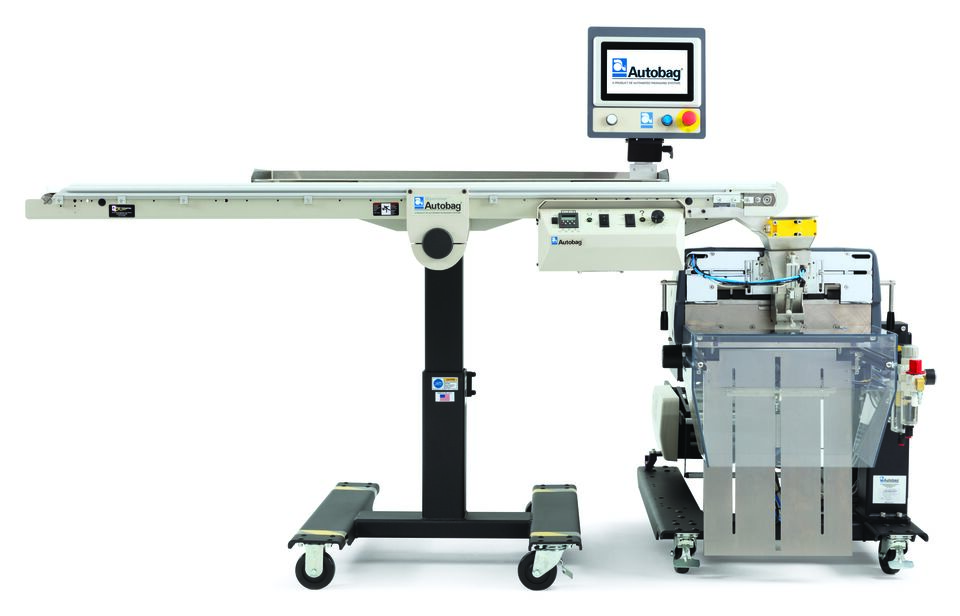

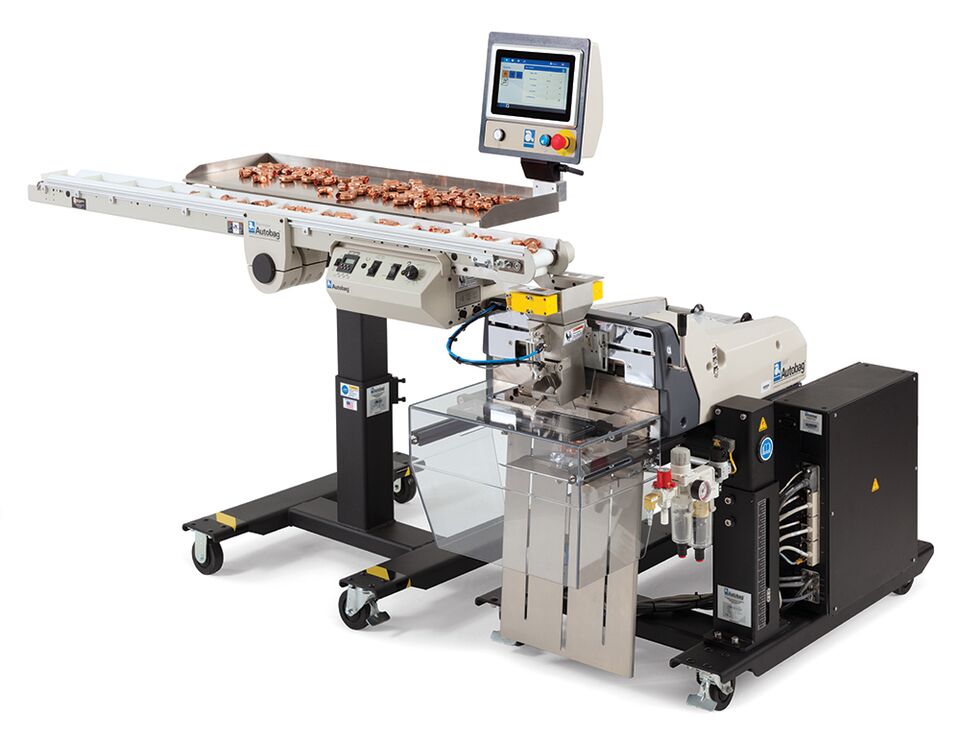

AUTOBAG® Brand Maximizer

AUTOBAG® Brand Maximizer


Capable of conveying and counting hand-placed items at speeds up to 50 batches per minute, this continuous motion, flighted conveyor has been designed to be simple to use, dependable and operationally flexible to double the productivity of hand load applications.

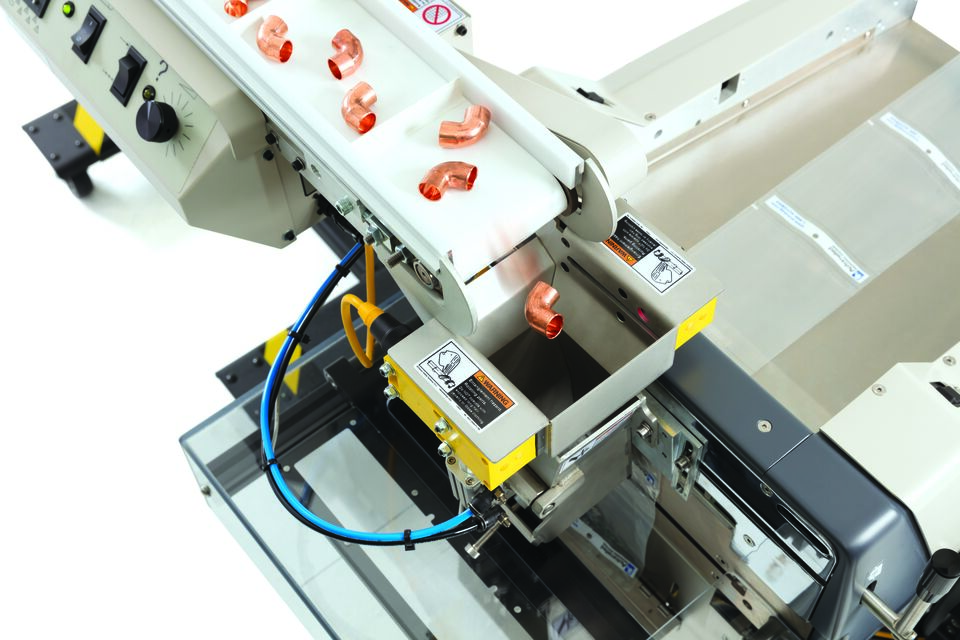

When used in conjunction with the AUTOBAG® Brand 500 High-Speed Bagging System, an operator retrieves products from the load tray and places them into the Maximizer conveyor flights. The conveyor then delivers the product to the detection eye and accumulating funnel. Once the pre-set count is reached, the product is dropped into a pre-opened bag, sealed and detached, while another bag is presented for loading. This continuous conveying and counting motion speeds productivity in most hand-load applications.

Utilizing the very latest technology, the AUTOBAG® Brand Maximizer is capable of detecting and counting product from .25" to 5.5" in length and up to 3" in width.

Features and Benefits

  • Flighted conveyor belt ensures part separation while accurately and efficiently moving product to counting eye
  • Simple interface panel houses controls for setting single count or multi batch, as well as continuous and intermittent indexing
  • AutoTouch™ Control Screen from the AUTOBAG® Brand 500 High-Speed Bagging System with decentralized mounting to Maximizer for easy operator access
  • Reduces labor cost while doubling packaging throughput, providing higher packaging productivity with fewer operators
  • Can be integrated with simple robotics for even faster packaging
  • Ideal system for hand-load kit packages and sub-assemblies, giving the operator the time and control of the system speed rates
  • Electronic Eye Counter and Accumulator signals bagger to cycle only when Maximizer flight contains product, preventing bag waste


This is a table


200 lbs. (91 kg)


110/220 VAC; 50/60 Hz

Air Supply:

5 CFM/80 psi of clean, dry air

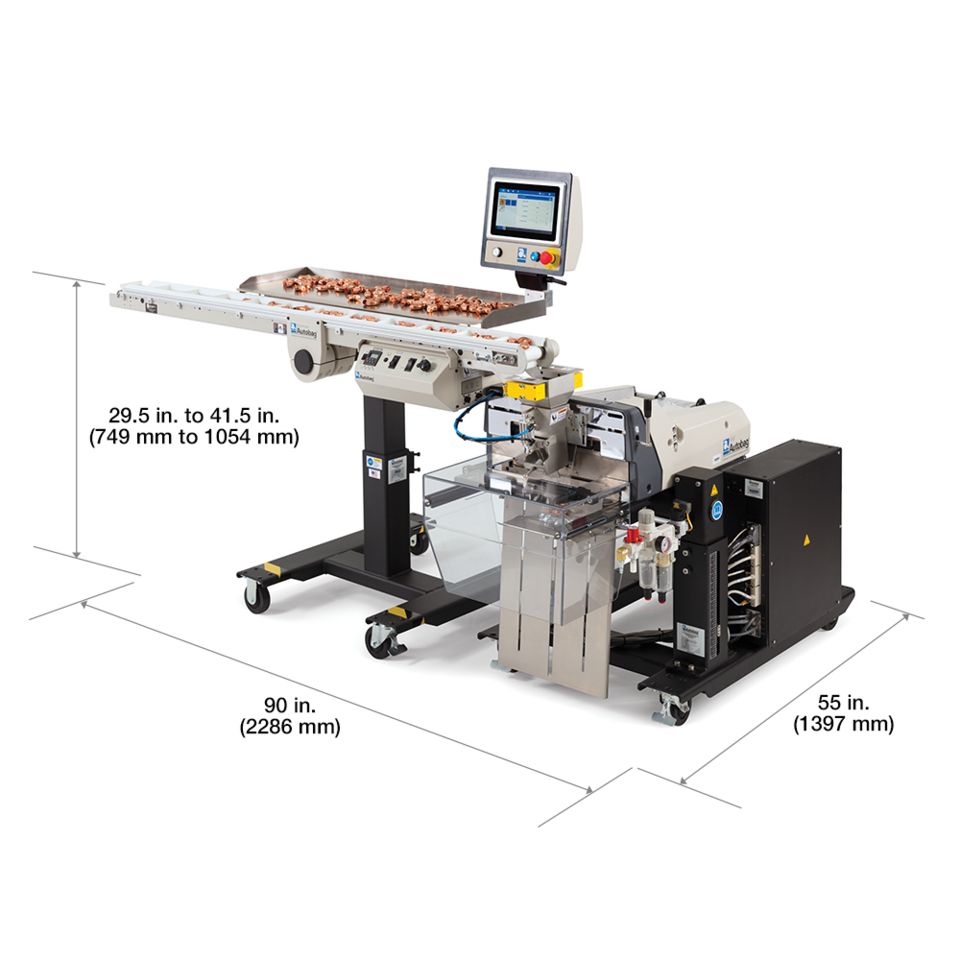

90 in. (2229 cm)


29.5 to 41.5 in. (75 to 105.4 cm)


55 in. (140 cm)

Max Belt Flight Load:

50 lbs. (23 kg)
