Vacuum Chamber Systems
01 Overview
CRYOVAC® brand chamber vacuum systems provide semi-automatic to automatic, consistent vacuumizing.
With more than 40 years of innovation, CRYOVAC® brand vacuum chamber systems offer a range of semi- and fully touchless automated rotary and single-chamber systems that deliver optimum efficiency and performance for production lines. CRYOVAC® brand system layouts and features can be completely tailored to the production unique requirements.
- Efficient and consistent vacuum packgin with continuous flow
- Systems run with CRYOVAC® brand vacuum shrink bags and materials to provide superior oxygen barrier and aggressive sealant technology
- Robust, high quality build using food-approved materials throughout
- Hygienic design makes cleaning easy and effective
- Semi- and fully automated system options available
- Minimal or no operators required
- System specifications dependent on configuration
02 Product Lines
Product Range
VS Series
VM Series
Rotary Systems
VACUUM CHAMBER SYSTEMS

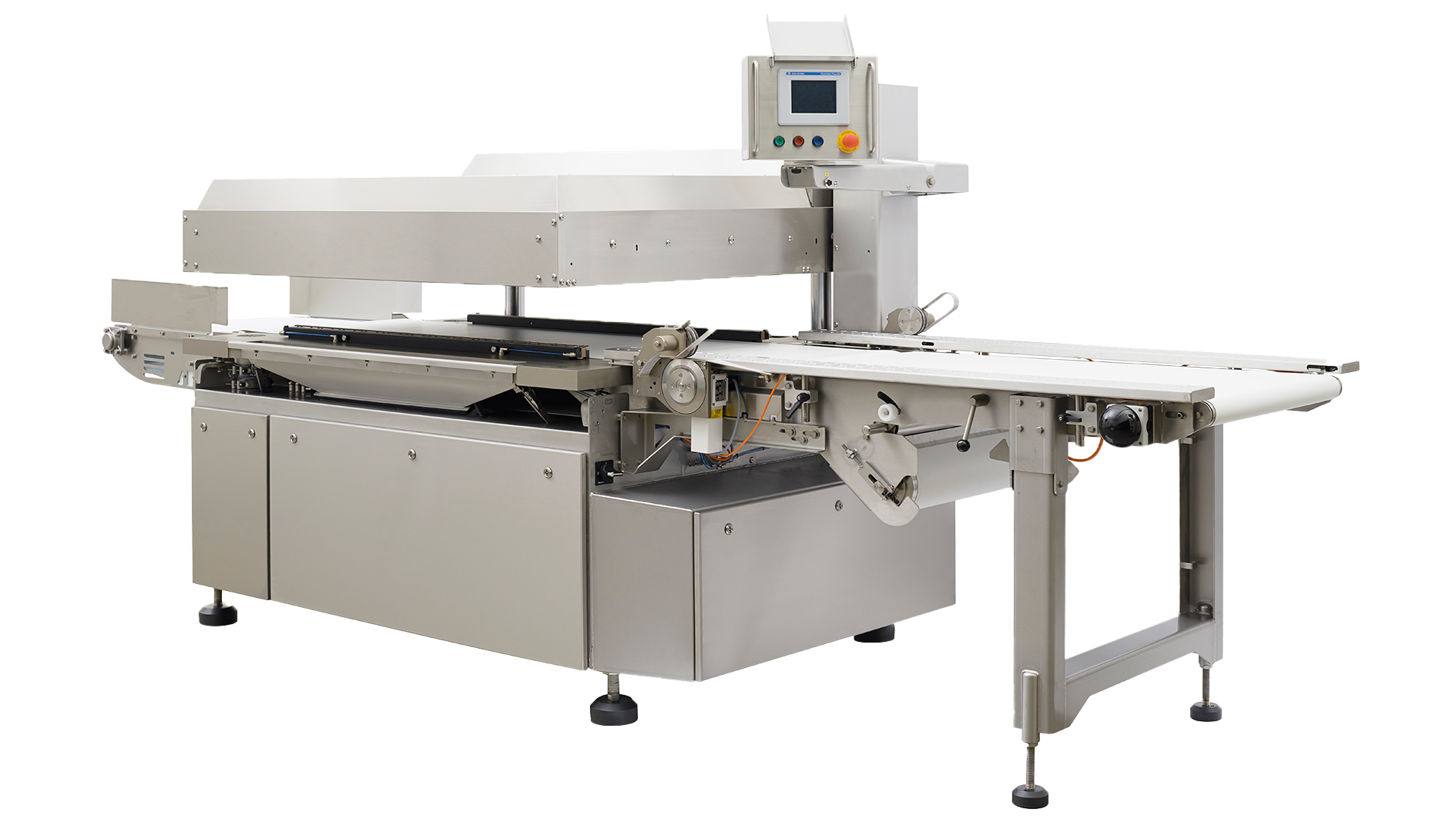

VS Series Vacuum Systems
CRYOVAC® brand VS series vacuum chamber systems provide semi-automatic, consistent vacuumising using one chamber. Vacuum sealing machines available for all productivity leels, suitable for food processors who operate small, medium, or large-scale packaging facilities. Our vacuum chamber systems offer industry leading performance and quality associated with the CRYOVAC® brand.
- Labour cost reduction and line integration thanks to integrated buffer infeed conveyor
- Accurate production positioning (+/- 5 mm) by electronic synchonized conveyor belt transport system
- Vacuum control system improves packing performance and product protection
- Operational costs reduction, as no water needed for sealing bar cooling
- Final bag neck cutting system
- Automatic power-saving facility when the machine is not used for a set period
- Convenient chamber opening system allowing free access around the machine
- Option for increased sealing bar length, allowing for higher productivity (model dependent)
- Hard and soft vacuum process available dependent on application
VACUUM CHAMBER SYSTEMS

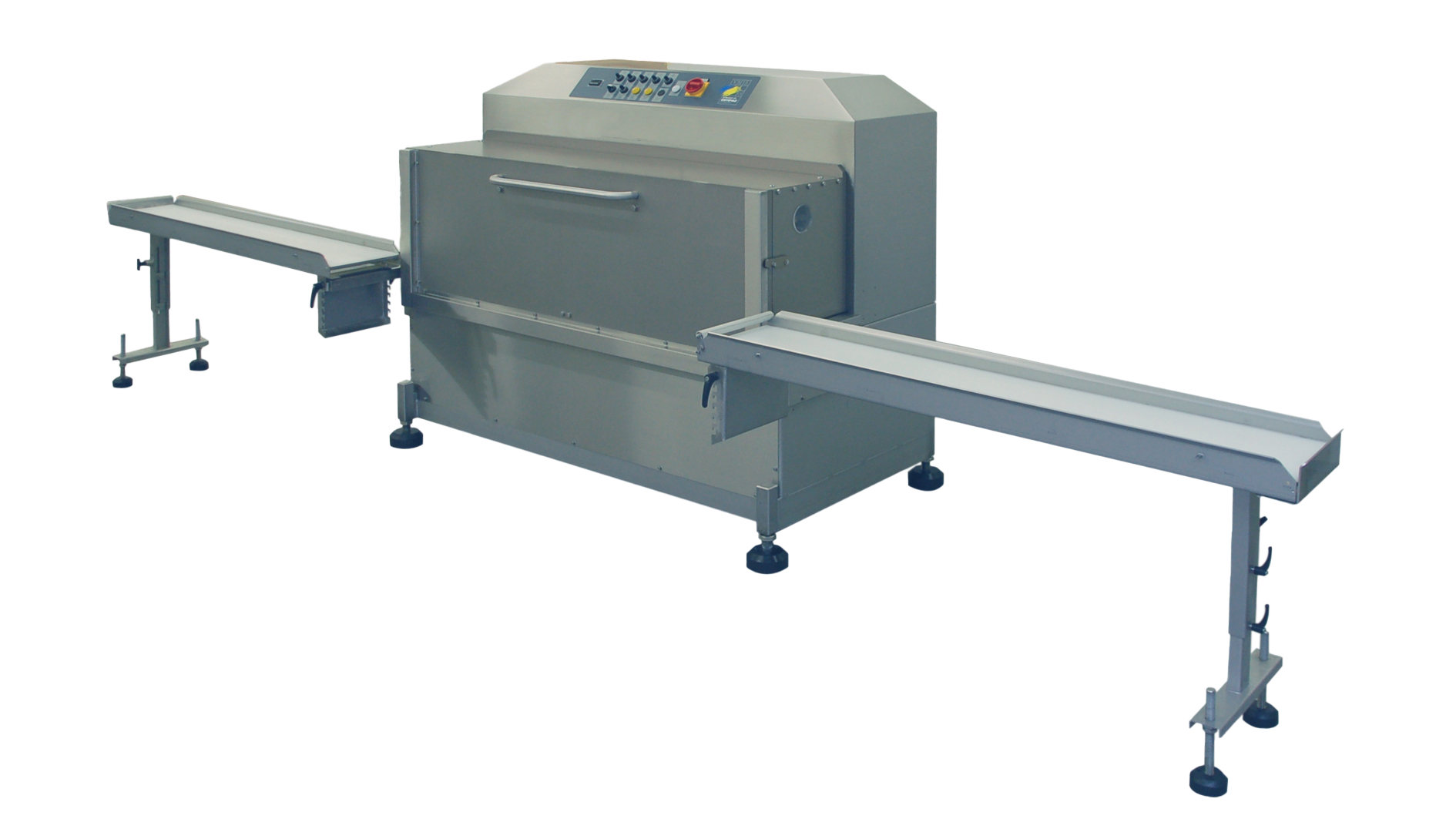

VM Series Vacuum Systems
High-quality, single-chamber semi-automatic vacuum packaging machine designed specifically for cook-in-bag applications. The adjustable bi-active sealing system includes a double seal function offering improved pack security, optimised pack presentation, and reduced material usage.
- Provides semi-automatic, consistent flow that can achieve up to 3.5 cycles per minute
- Designed for use with CRYOVAC® brand pre-made shrink bags that are ideal for smoked and processed meats
- Adjustable vacuum chamber drawer table height for operational comfort and ease
- Example working speed: 630 m3/h; vacuum pump will reach 10 mbar in 8.5 seconds
- Energy consumption: 1 kWh per hour
- Operators: 1
- Product dimensions: Seal bar length 1400 mm, product width 280mm max, height 235mm max
- Weight 50 kg (maximum weight molds + ham)
VACUUM CHAMBER SYSTEMS

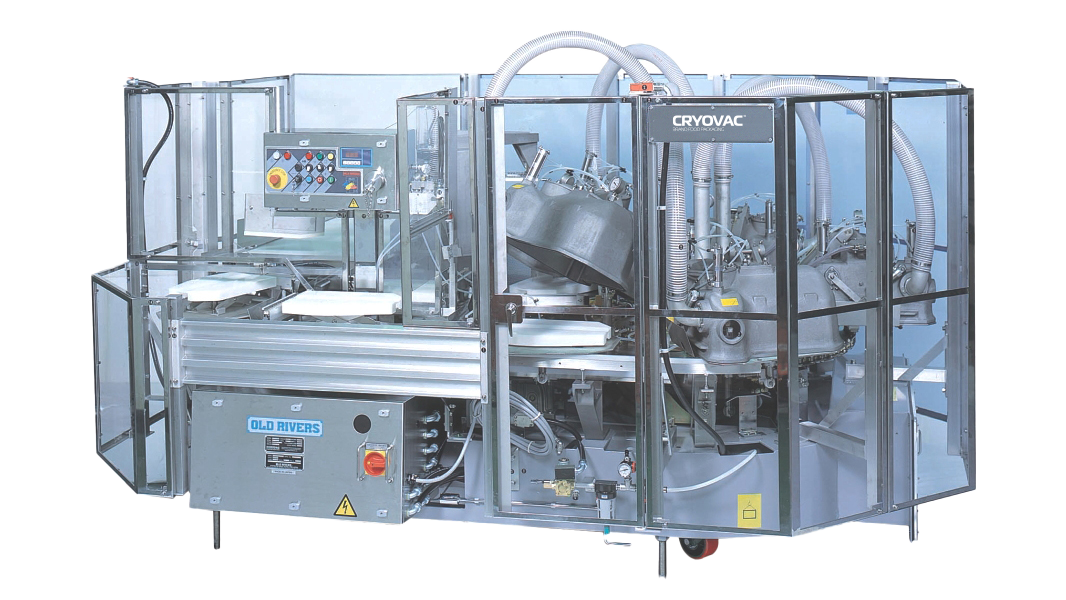

Rotary Vacuum Chamber Systems
For over 40 years, CRYOVAC® brand rotary vacuum chamber systems have delivered the food packaging industry’s highest level of performance, speed, and excellence. Although we launched our unique, rotary design more than four decades ago, we continue to innovate and upgrade our systems, offering new and simplified features, chamber sizes, speeds, layouts, connectivity options, and construction materials for your unique needs.
- Provides semi-automatic, consistent vacuumizing without sacrificing production speeds
- Options available for ready-to-eat foods that allow full washdown
- Allows fast, easy product changeover for optimum packaging flexibility
- Runs with CRYOVAC® brand vacuum shrink bags to provide superior oxygen barrier and aggressive sealant technology
- Evacuates virtually all air with unique vacuum process
